SPECS
Sensor Type Sony 1/2" CMOS Sensor
Scale 4:3/16:9 Switchable
Tv System PAL/NTSC Switchable
Resolution 1200TVL
FOV 4:3 WIDE FOV-H: 145° FOV-D:180° / 4:3 NARROW FOV-H: 125° FOV-D:160° / 16:9 FOV-H: 145° FOV-D:165°
Shutter Speed PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
Video Output CVBS Analog Signal
Minimum Illumination 0.0001Lux
White Balance Auto
DNR 3DNR
WDR 100dB
DAY/NIGHT EXT/Auto/Color/B&W

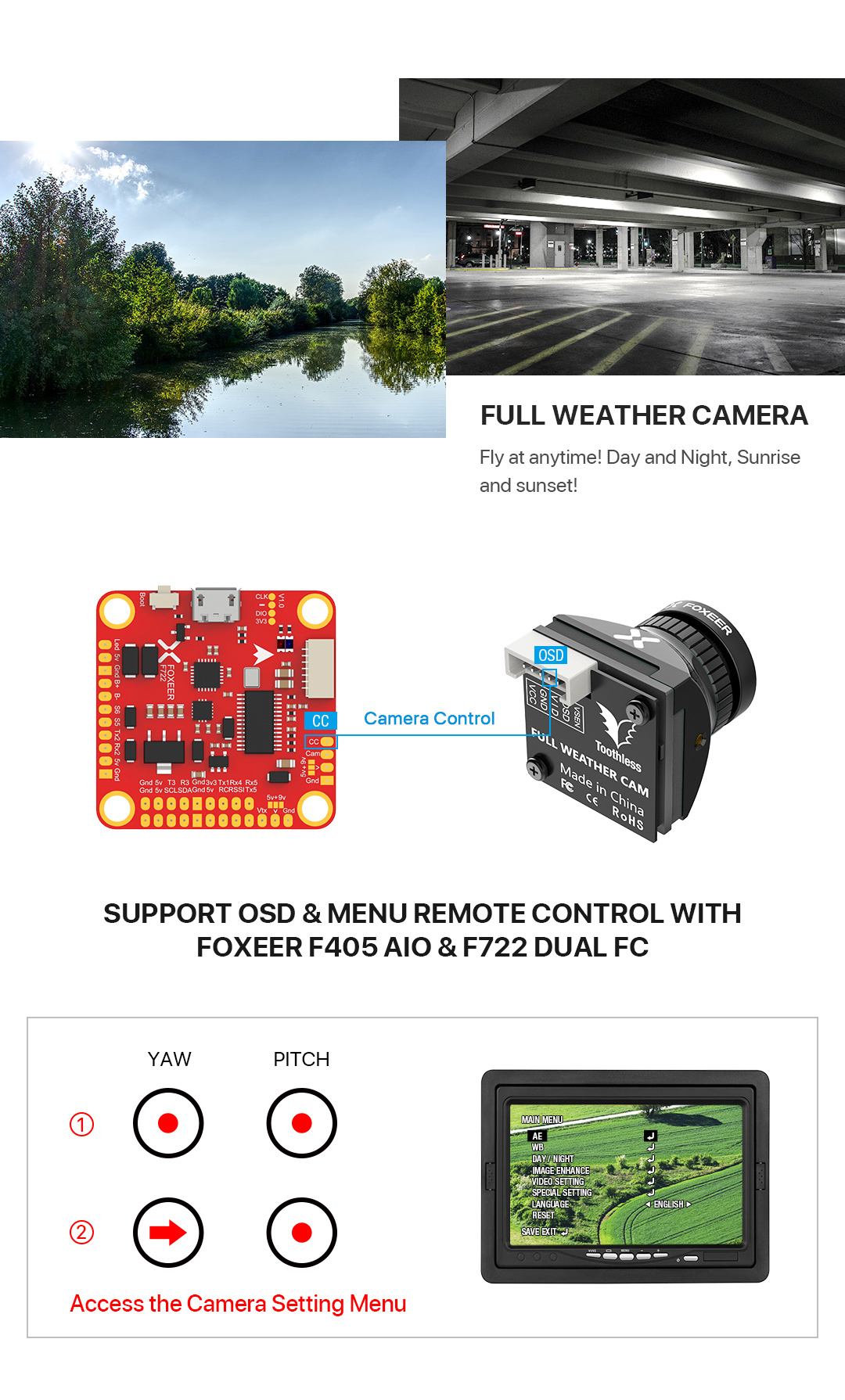

Flight OSD Voltage/Cam Title/Time
Input Voltage 3.8V~16V
Language ENGLISH /??/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / ??? / EAAHNIKA
Working Temperature -10°~50°C RH90% MAX
Working Humidity 20~80%
Storage Temperature -20°~70°C
Consumption 80mA±15% @ DC12V 170mA±15% @ DC5V

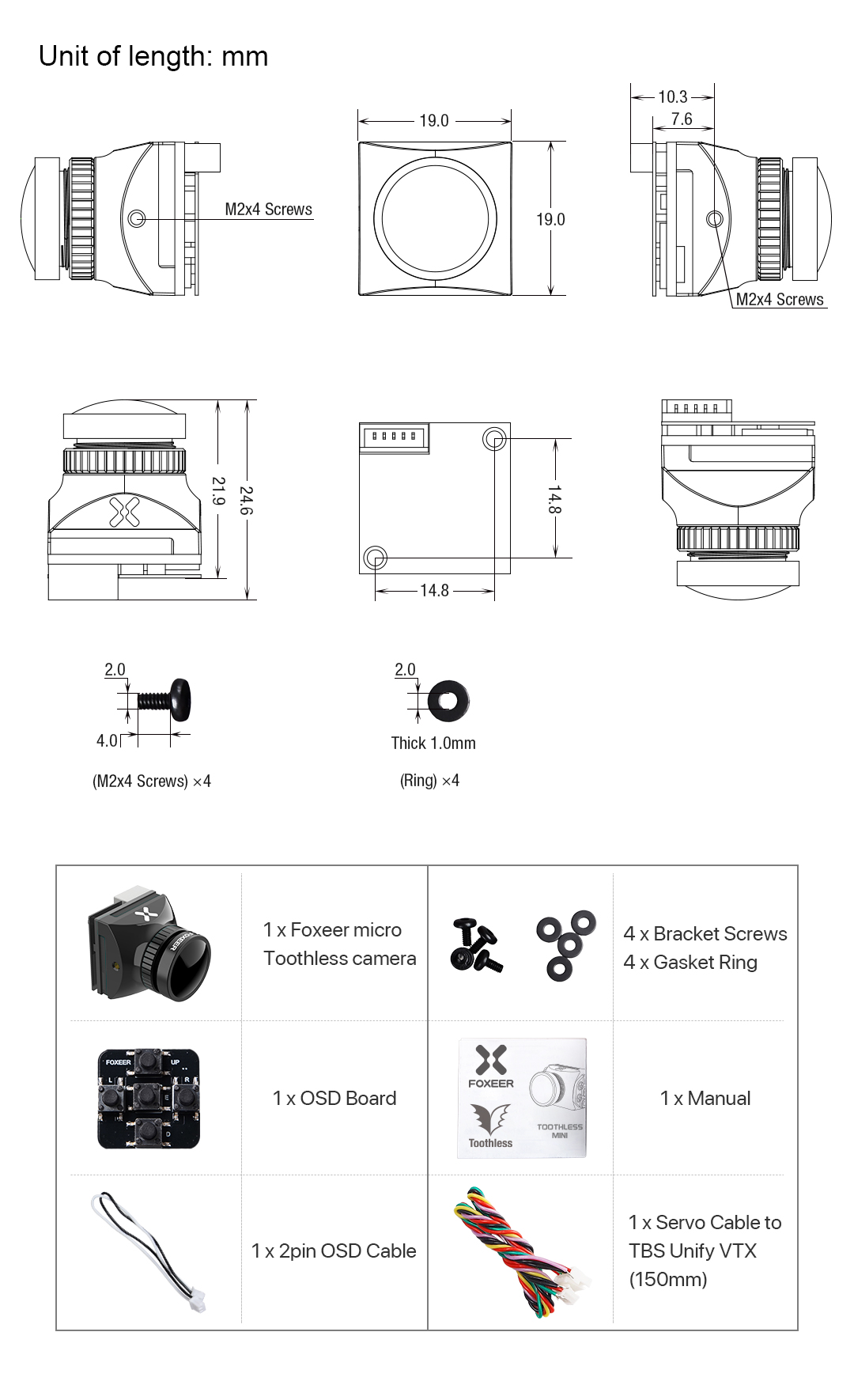

Dimension 19*19mm
Weight 8.5g(Exclude cable)
