HDZero AIO5 is the world’s first digital video AIO, enabling bind and fly 65mm whoops to weigh less than 19.4g. AIO5 integrates a F4 flight controller, HDZero 5.8GHz digital video transmitter, SPI 2.4GHz ExpressLRS 3.0 receiver, DSHOT protocol 4-in-1 ESC, and a 5V/1A BEC.

The minimum voltage has been improved to be 2.5V, which ensures that video never stops transmitting before the motors stop working. Using a single thick PCB rather than a stack of 2 improves durability and simplicity – get ready for a new era of no-compromise tiny whooping in clear digital video!

The HDZero AIO5 is an excellent collaboration between Happymodel and HDZero. It is available at major FPV resellers worldwide, and also at Happymodel and HDZero official online shops.

Specifications

MCU: STM32F411 (100MHz, 512K Flash)

Gyro: BMI270

On board voltage and amperage meters

Built-in 5A(each) BLHeli_S 4-in-1 ESC
MCU: EFM8BB21
HV Current: 5A continuous peak 6A (3 seconds)
Factory firmware: O_H_5_48_V0.19.2.HEX
Dshot600 ready

Built-in 5.8G HDZero VTX
RF output: 25mw/200mW
Supported channels: R1-R8, F2/F4, L1-L8

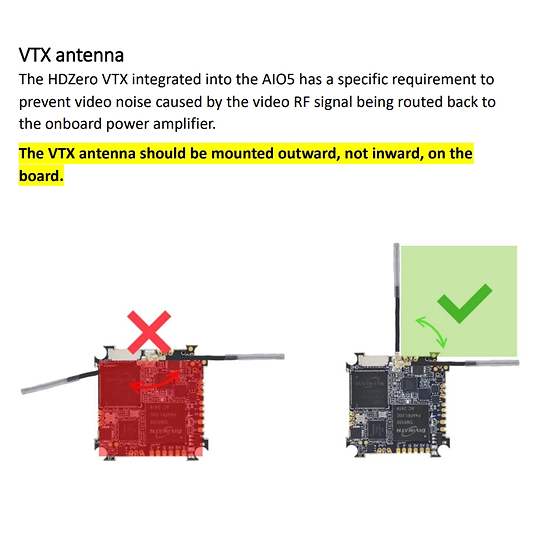

UFL connector (ultra-lite linear antenna included)

Built-in SPI ExpressLRS 2.4GHz receiver
Packet rate option: 25Hz/50Hz/150Hz/250Hz/500Hz

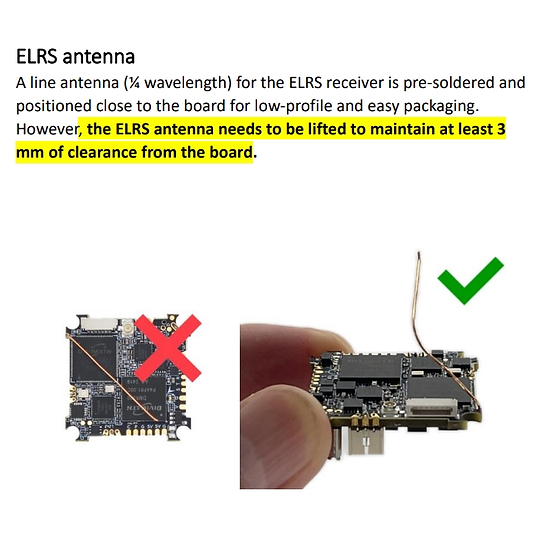

Pre-soldered enamel wire antenna
Telemetry output power: <12dBm

Built-in 5V 1A BEC

Flight controller firmware target: CRAZYBEEF4SX1280

Power supply: 1S battery (2.5V – 4.35V)

Fully compatible with the popular whoop frames
Board size:28.5x28.5mm with a 25.5x25.5 mounting hole size

Weight: 5.7g(without motor plugs), 6.3g (with motor plugs)

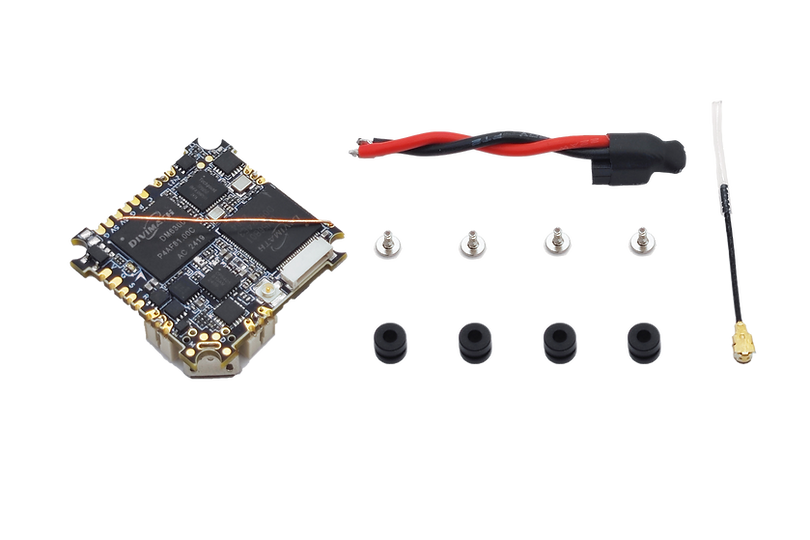

Included
1x HDZero AIO5 board
1x Power cable with inverted angle A30 connector
4x screws
4x rubber grommets
1x ultra-lite linear VTX antenna

HDZero AIO5 User Manual
