The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

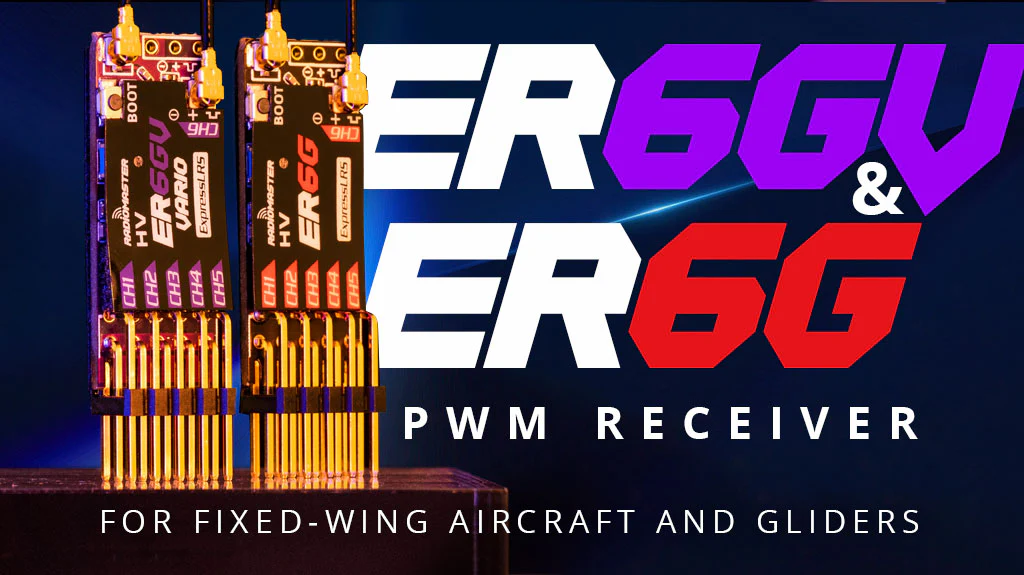

The ER6G & ER6GV receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.

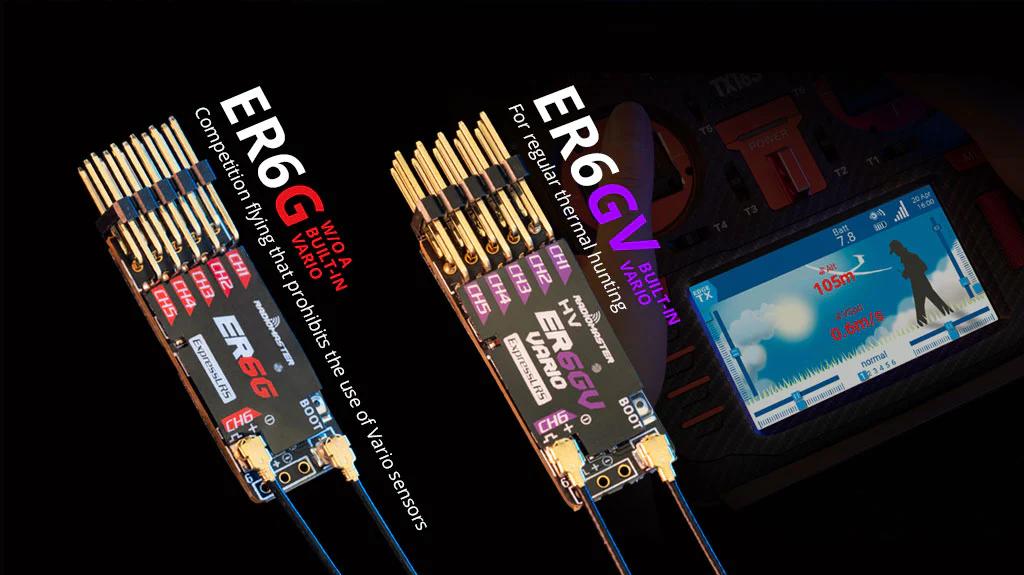

The ER6G Receiver has the same functionality as the ER6GV only without a built in Vario for competitions that prohibit the use of a Vario or simply for users who do not need a vario on their receiver.



Features
Based on the Revolutionary ExpressLRS System
High performance, high reliability, flexible configuration, fast response speed and ultra-long range

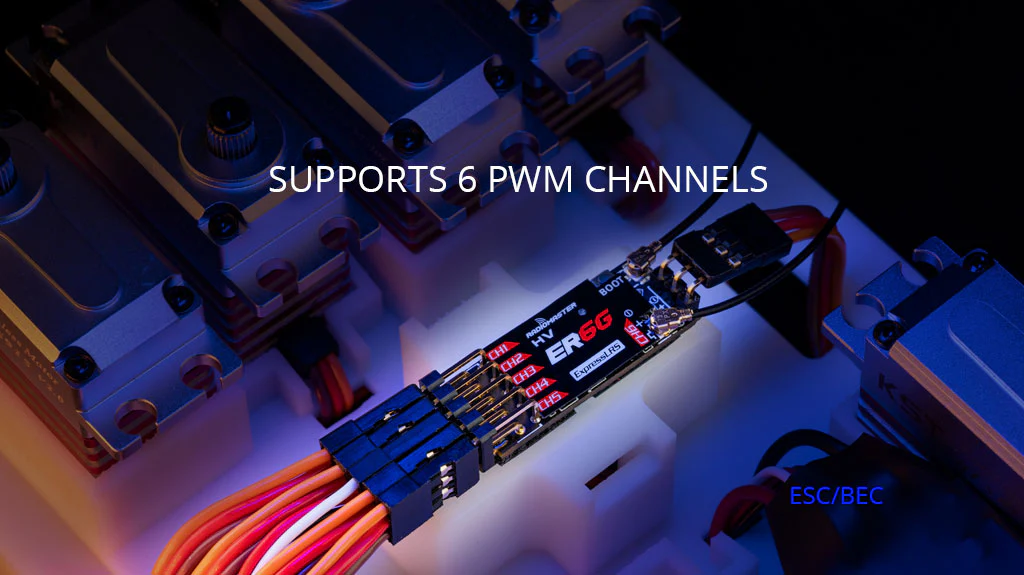

Support 6 PWM Channels

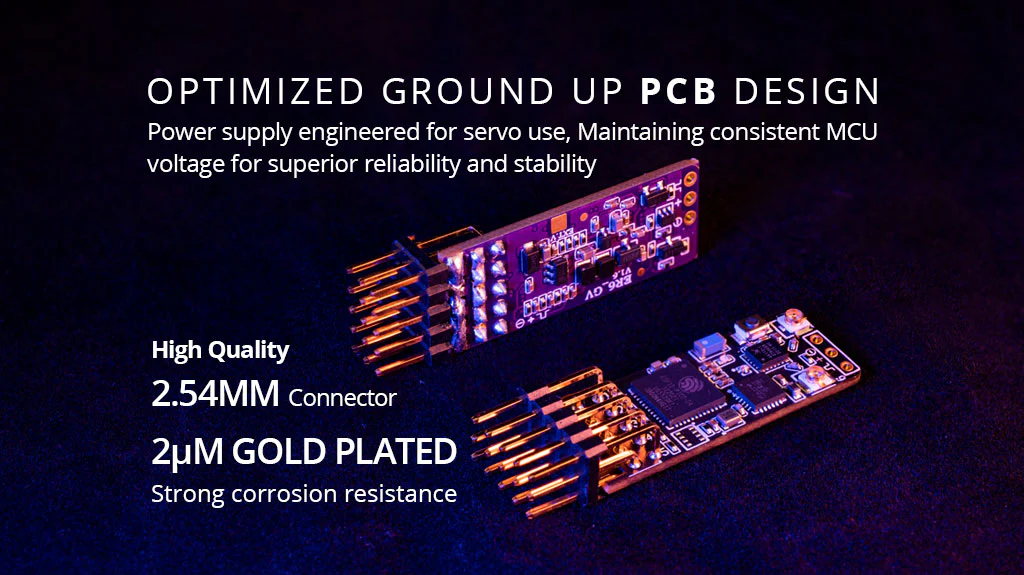

Optimized ground up PCB design

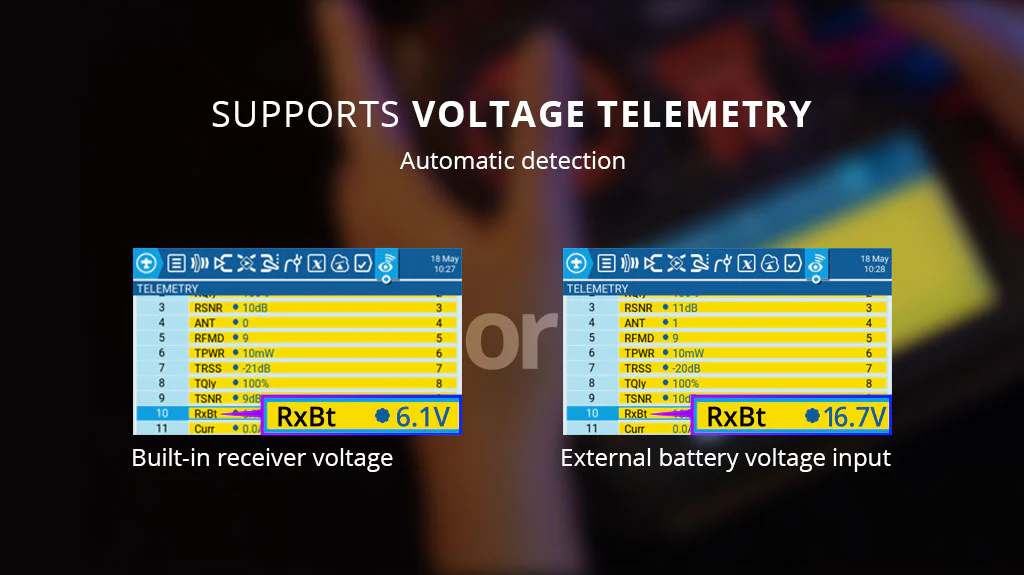

Automatically voltage telemetry of external battery voltage or built-in receiver voltage
ER6GV Receiver is built-in high-precision air pressure sensor (Vario)
Supports Wi-Fi updates and WEBUI configuration
High quality 2.54 mm connector

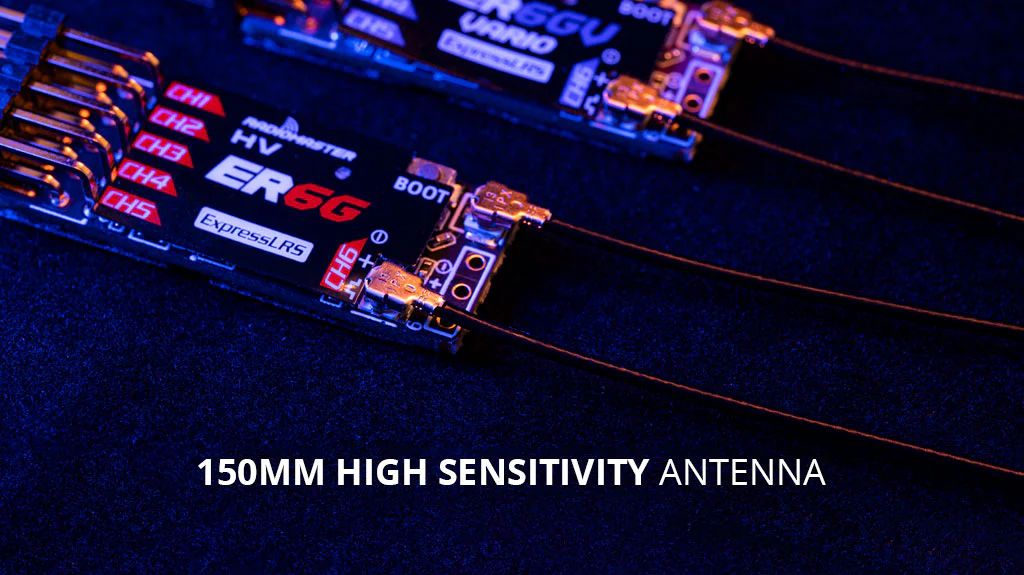

Standard 15 cm High Sensitivity Antenna
For fixed-wing aircraft and gliders
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification (ER6GV)
Item: ER6GV 2.4GHz ELRS PWM Receiver
Power supply: DC 3.5 - 8.4V
Antenna type: 15cm high sensitivity antenna
Wireless protocol: ExpressLRS 3.2 pre-installed
Output channel: 6CH PWM
Serial Output: CRSF / Sbus
Return power: maximum 50mw (LUA Adjustable)
Built-in high-precision air pressure sensor (Vario)
Battery voltage detection range: DC 3.0 - 26V
Weight: 5.0 grams

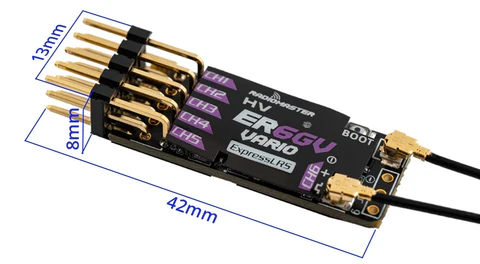

Dimensions: 42*13*8mm
Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6-GV 2.4GHz Diversity+6xPWM+Vario RX

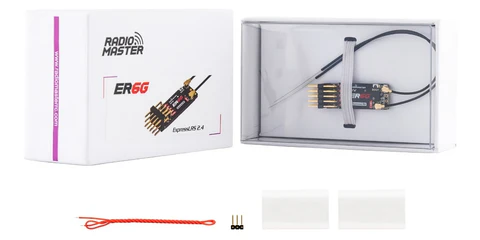

Package Includes
1 * ER6G or ER6GV 2.4GHz ELRS PWM Receiver
1 * Voltage telemetry wire (Type-A)
2 * Heat-shrink tube
1 * User Card



Download

ER6GV Receiver User Manual
