What's in the box?

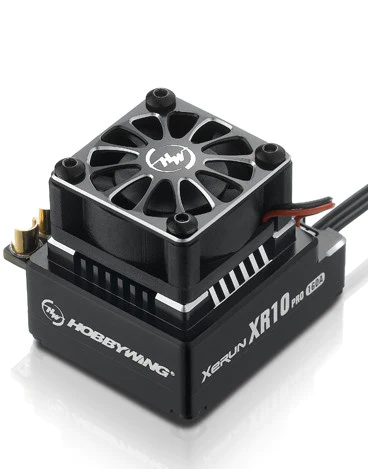

XR10 PRO ESC w/ a cooling fan
(2) Input wires 12AWG-200mm
(3) Output wires 12AWG-200mm
(2) x cooling fan (comes with one back-up fan)
Dual capacitors
Decals
Bonus parts: heat tubes, double tape, nylon cable zap traps
User's manual

Bottomline
Works with 4 pole brushless motor, a full sensor mode when paired with HOBBYWING motor
10 different programmable profiles available through LCD program box or WiFi Express Module
Fully adjustable brake and throttle functions
LiPo Low Voltage Cut off
ESC thermal overheat protection
Motor thermal overheat protection
Remote On/Off feature
"1-degree" Precision throttle and brake control
Coast Control (patent pending*)
Drive Frequency Control
Brake Frequency Control
Boost Timing control and options for Modified racing
Turbo Timing control and option for Modified racing
Ultra-Low-resistance circuitry
ROAR-approved software including Zero-timing
Smallest footprint and height possible with current technology to fit within even more tighter space of a vehicle.
12-gauge high-quality power wires
Powerful external capacitor board
HOBBYWING Over-The-Air Firmware updateable through WiFi Express module (purchased separately)
The most advanced brushless ESC has proven by World Champ.competitions worldwide.

Specifications
ID: XR10 PRO ESC - Legacy
p/n: 30112600
Type: Scale: 1/10th Brushless Sensored ESC
Cont./Peak Current: 160A/1200A
Power input: 2-3S LiPo/4-9 Cell NiMH
BEC output: 6V/7.4V Switchable, Continuous Current of 4A (Switch-mode)
Wire input: Black-12AWG-200mm*2
Wire output: Black-12AWG-200mm*3
Size: 37.5x30.9x31.6mm (w/Fan & Fan Shroud)
Weight: 95g (w/ Wires)
Cooling Fan Voltage Range: 25.0x25.0x10.0mm Powered by the stable BEC voltage of 6V/7.2V

Application:
ROAR approved
1/10th Touring Car & Buggy & Drift Car & F1; 1/8th,1/10th Rock Crawler
