FLYWOO GM8 MINI V2.0 GPS

Write Review
Additional Information
  • Weight : 0.01
  • Model : FW-FW050V2
  • Out of Stock
$18.41US
Description
  • Brand: FLYWOO
  • Model: GM8 MINI V2.0 GPS

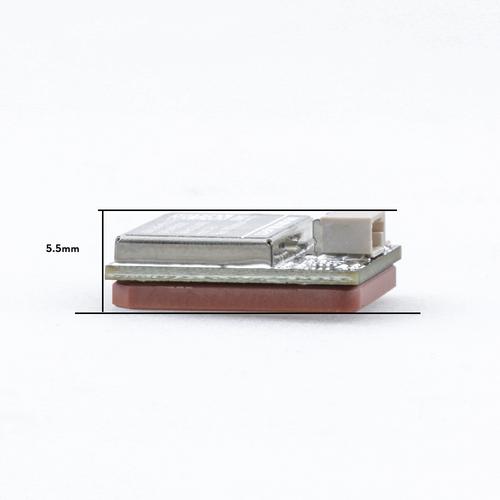

  • Dimension :?18mm*18mm*6mm

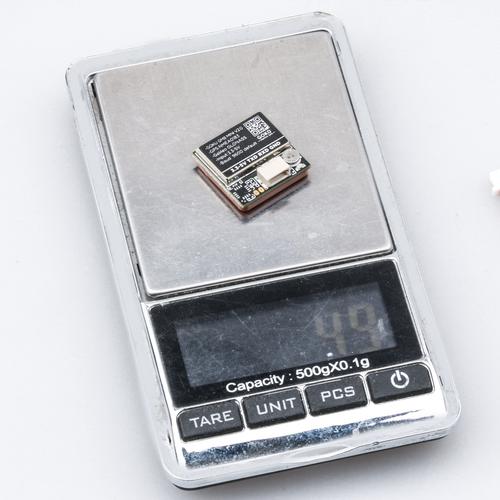

  • Weight : 4.6g
  • Connector : 1.00mm spacing between the 4pins patch seat

    Specification
    Electrical Characteristics
  • Chipset : M8030-KT
  • Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
  • Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
  • Channels : 72 Searching Channel

    Sensitivity
  • Tracking : -167dBm
  • Reacquisition : -160dBm
  • Cold start : -148dBm
  • Hot start : -156dBm

    Accuracy
  • Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
  • Velocity : 0.1m/sec 95% (SA off)
  • Timing : 1us synchronized to GPS time

    Acquisition Time
  • Cold Start : 26s
  • Warm start : 25s
  • Hot start : 1s

    Data and Update Rate
  • Support Rate : 4800bps to 921600bps,Default 9600bps
  • Data Level : TTL or RS-232,Default TTL level
  • Data Protocol : NMEA-0183 or UBX, Default NMEA-0183
  • Single GNSS : 1Hz-18Hz
  • Concurrent GNSS : 1Hz-10Hz,Default 1Hz

    Operational Limits
  • Altitude : 50,000m Max
  • Velocity : 515m/s Max
  • Acceleration : Less than 4g

    Power consumption
  • VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V
  • Current : Capture 50mA/5.0V
  • Operating temp :?-40 °C ~ +85°C
  • Storage Temp : -40°C ~ +105°C

    Indicator
  • TX LED:RED.The data output, TX LED flashing
  • PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed

    Wiring:
  • GND,TX output,RX input,VCC(3.0v-5.5v)

    Package Included
  • 1 x GM8 MINI V2.0 GPS Module
  • 1 x 10cm Cable
  • 1x Copper foil
