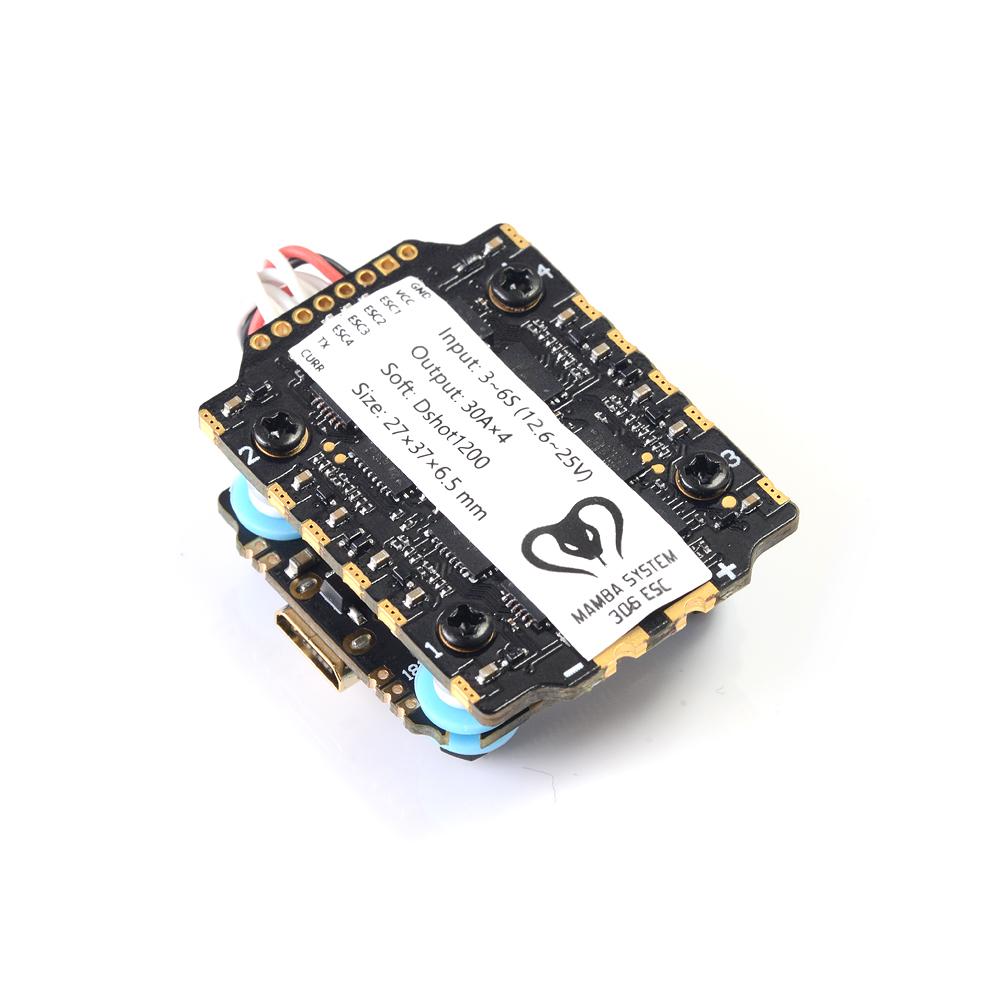

Diatone MAMBA F722 MINI STACK
[DT-MBF7M30]
[AY.IHYE]
[YA.BOU.BYB.LL]
$79.99US
- SNHE




Share |



Note:Because STM32F722 heat large , please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a good air circulation.

FC Specifications
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX2
LED: Blue&Orange for FC Status,,White 5V,Red 3.3V
WS2812 LED Control: BF LED Control
Smartaudio: Yes
RSSI: Yes
Buzz: Yes
Input: 2~6S Lipo (8.4~25V)
VTS Protection: Yes
BEC: 5V 2A (Max 3A)

ESC Specifications
INPUT VOLTAGE: 2~6S Lipo (7.4V~25V)
CONTINUE CURRENT: 30A×4
BURST CURRENT: 35A (10S)
BEC: NO SOFT: Dshot300/600/1200
MOUNTING: 20mm/M2
Supply : Panasonic High Frequency 470uF/35V

Diagram Link

FC Firmware
BetaFlight
Target: MAMBA F722 (uploading.....)

Download Link

Mounting: 20×20mm,Φ2
Dimensions: 30×36.5×13.5mm
Weight: 11g

Including
1×FC MAMBA F722MINI Stack
