DYS MR1407 Race Edition 4300KV Brushless Motor
[MR14074300KV]
[O.YEEE]
[HA.UUO.UEI.BIY]
$9.99US
- SNHE




Share |



Features
*New design with imported NMB bearing
*N52 magnet and 0.2mm lamination

*Powerful with 540g thrust to work with 3" Prop

*Special design for the FPV racer champions

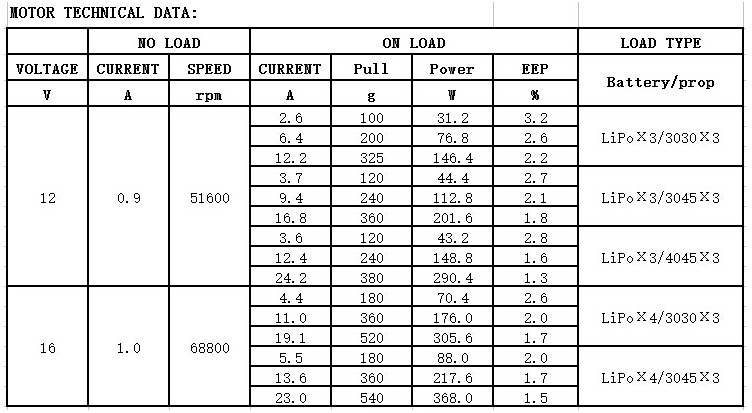

Specifications:
KV..............................................................................................................4300
Configu ration.................................................................................................NP
Stator Diameter.......................................................................................14.0mm
Stator Length............................................................................................7.0mm
Diameter..................................................................................................3.0mm
Motor Dimensions(Dia.*Len)...........................................................Φ18.3×16.0mm
Weight (g)................................................................................................14.66g
No.of Cells(Lipo)...........................................................................................3-4S
Max Continuous current(A)..........................................................................24.20A
Max Continuous Power(W)..........................................................................368.0W
Internal resistance.......................................................................................0.36Ω
