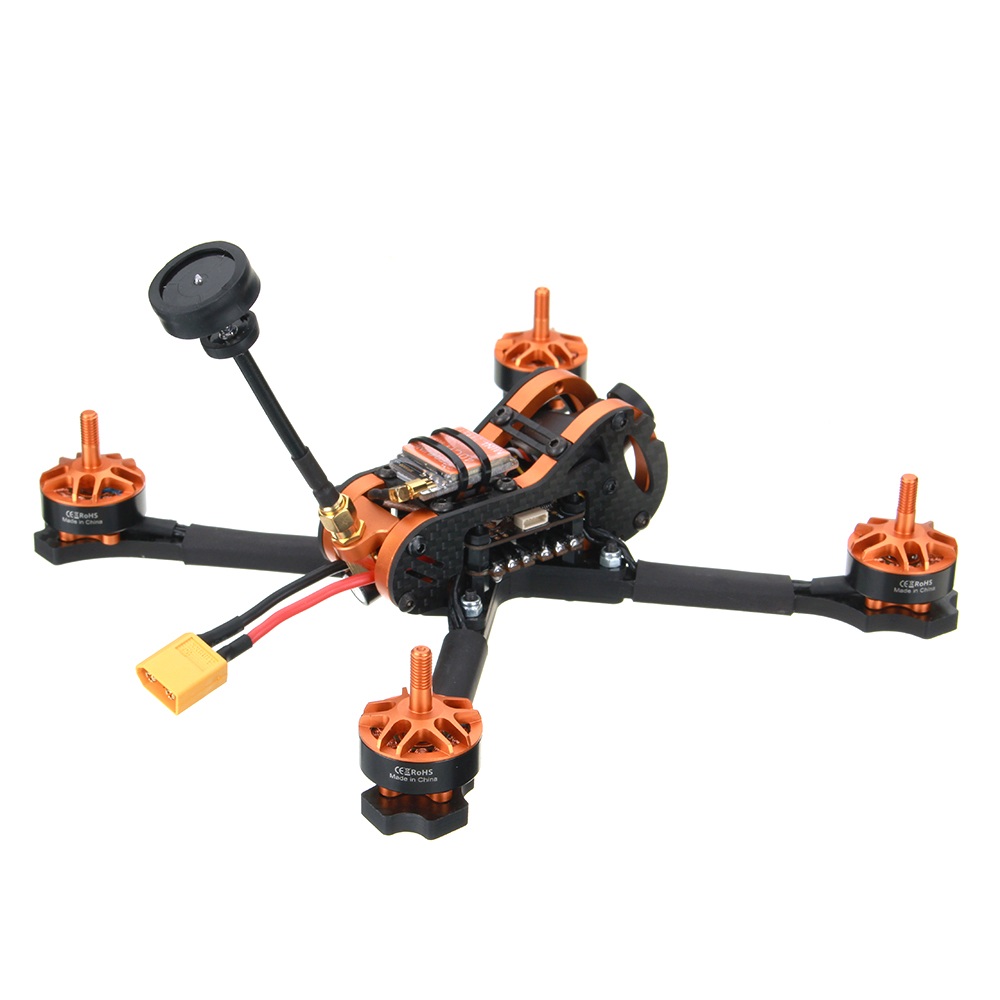

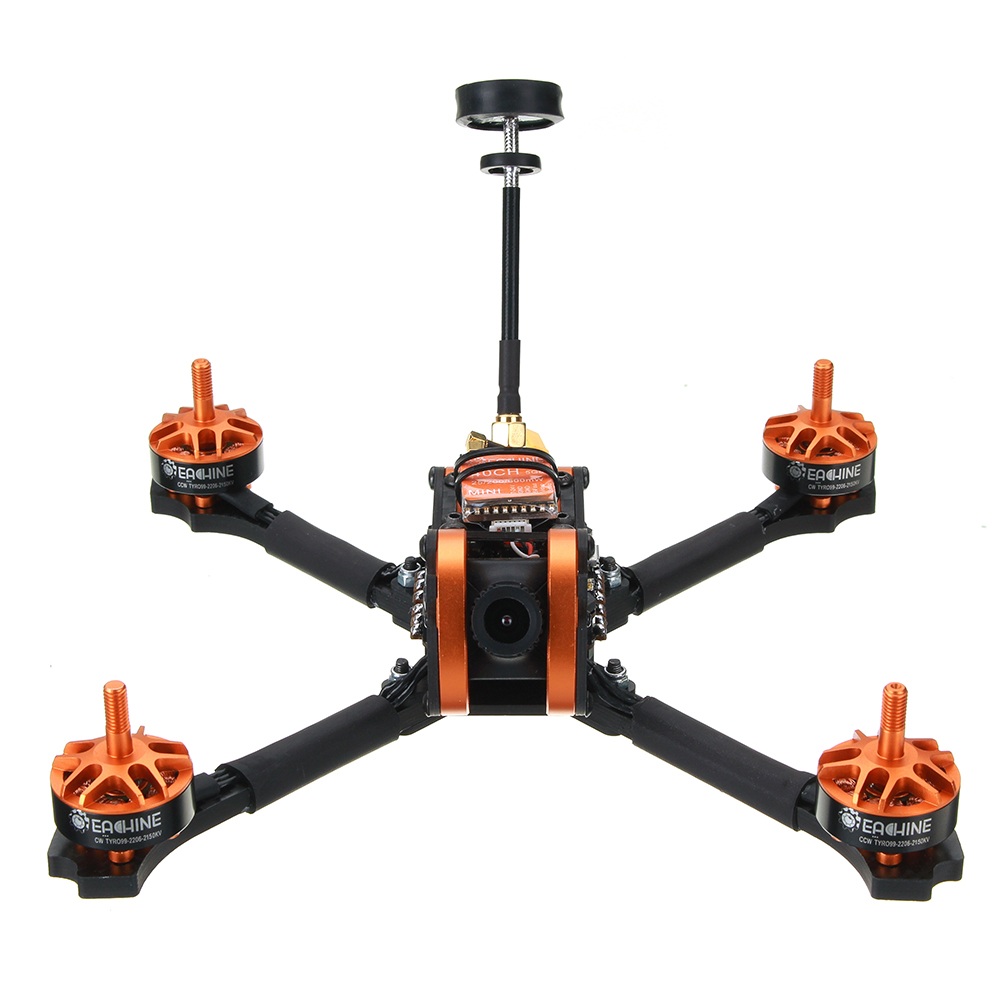

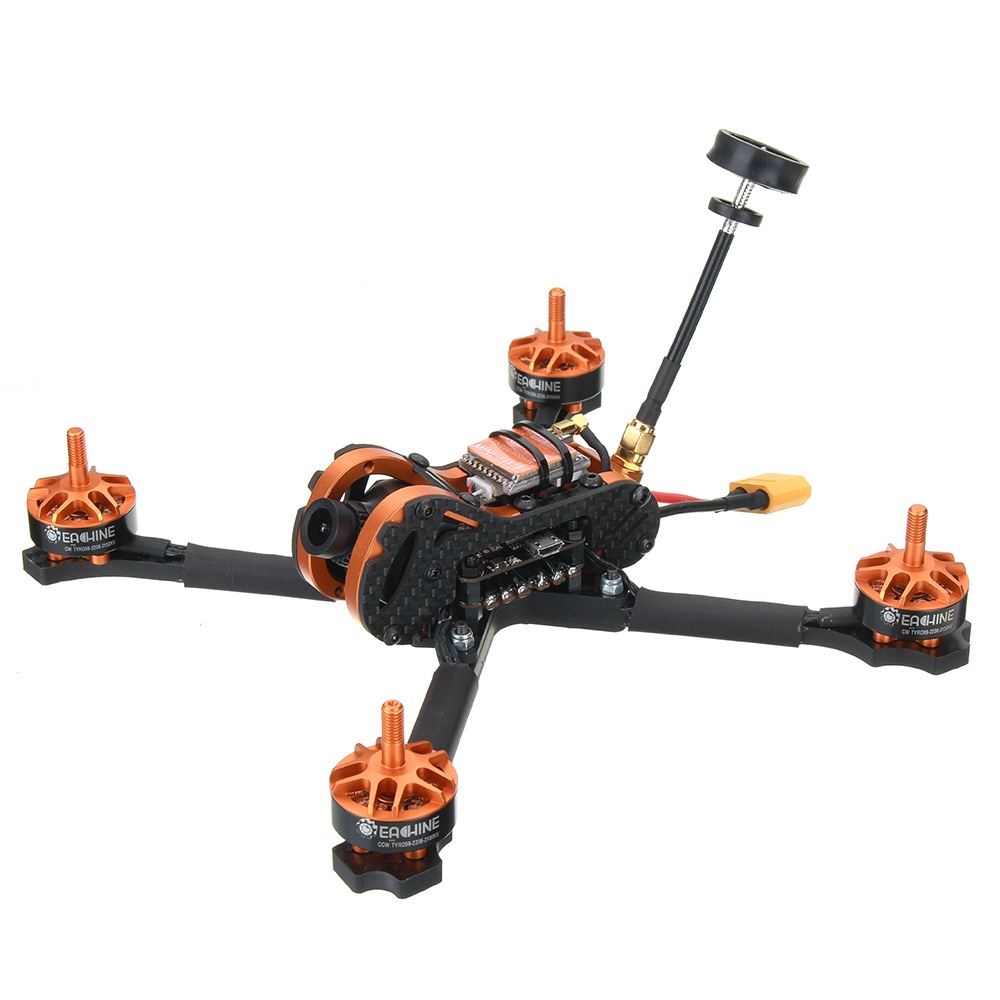

Eachine Tyro99 210mm DIY Version FPV Racing RC Drone F4 OSD 30A BLHeli_S 40CH 600mW VTX 700TVL Cam

Write Review
Additional Information

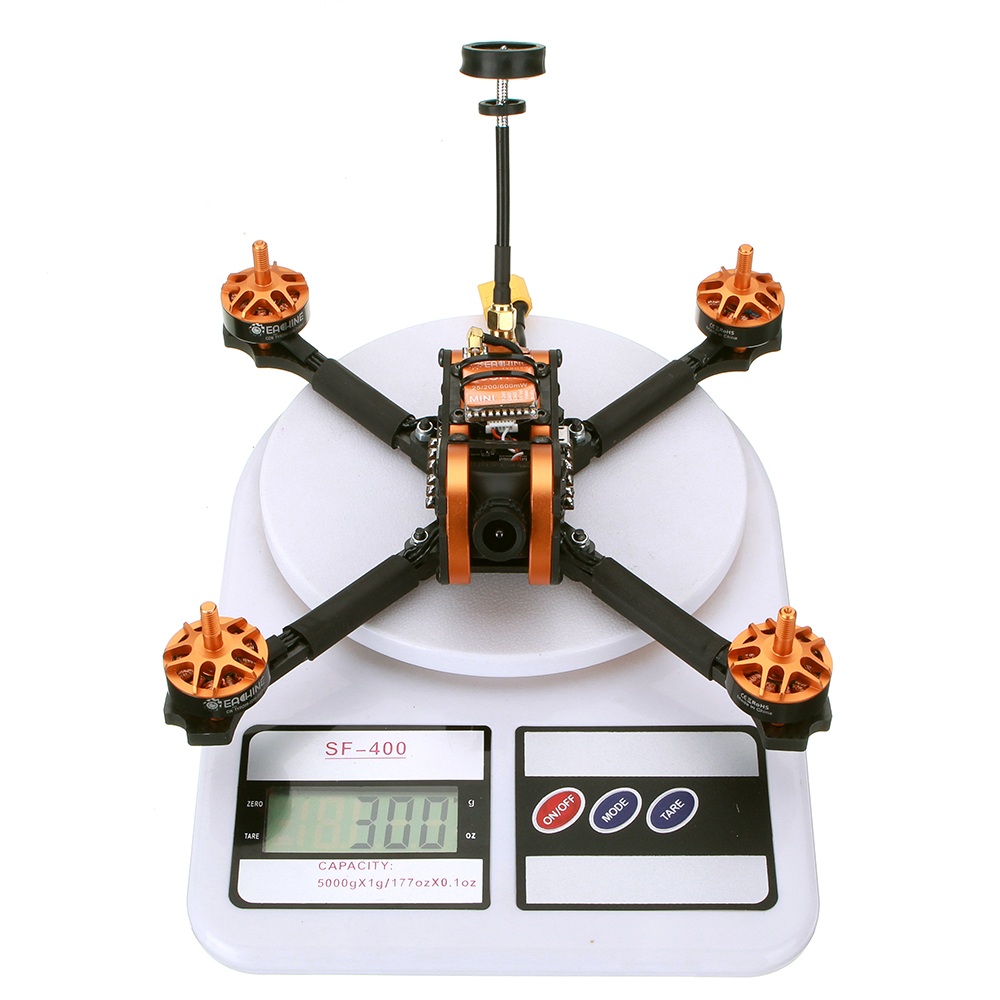

  • Weight : 0.60
  • Model : 1338893
  • Out of Stock
$153.99CAD
Notice: this is the DIY version that comes unassembled.

Specification

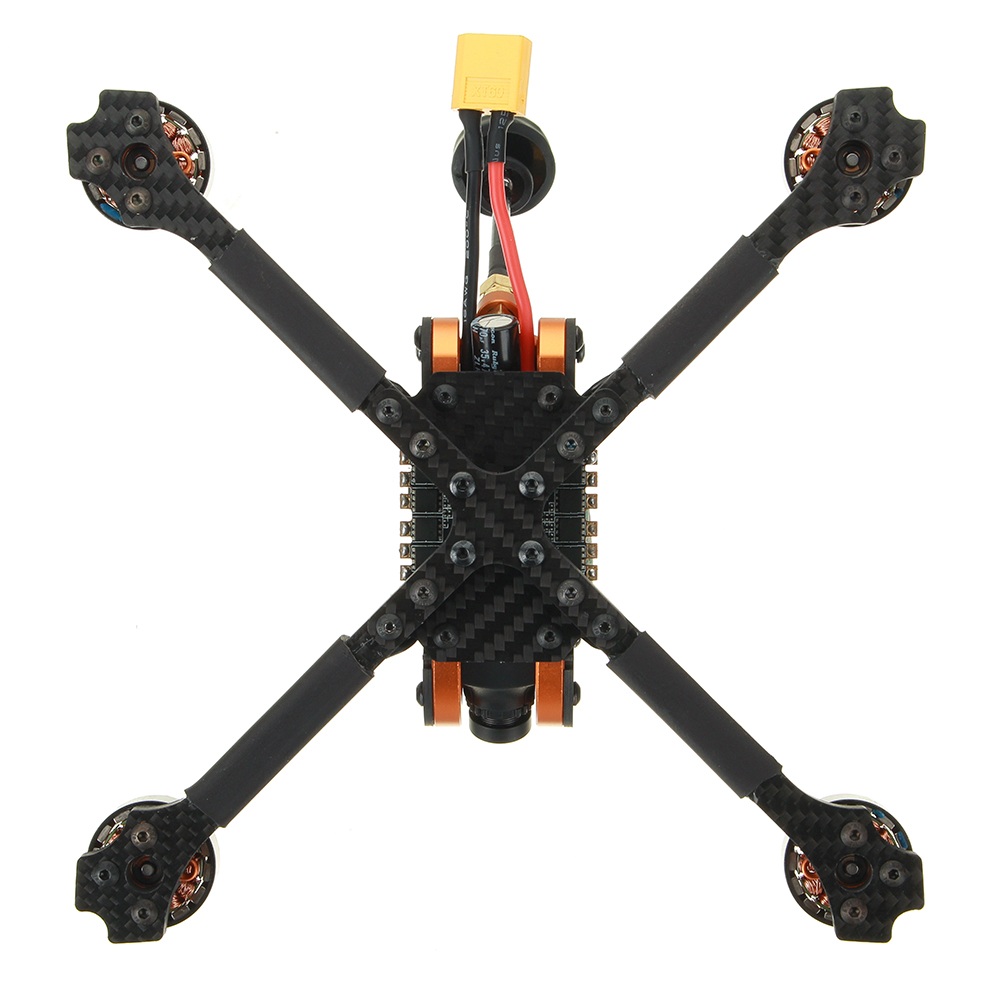

210mm Frame Kit

  • Wheel base: 210mm
  • Frame arm thickness: 5mm
  • Bottom plate thickness: 2mm
  • Side plate thickness: 2mm
  • Frame kit material: 3K carbon fiber & 6065 aluminium

    2206 2150KV Brushless Motor

  • Motor KV: 2150RPM/V
  • Idle current (Io/10V): 1.26A
  • Lipo cell: 3-5S
  • Weight: 31g
  • Max continuous current: 31A
  • Max continuous power: 496W
  • Max thrust: 1050g (4S/5")
  • Configu-ration: 12N/14P
  • Motor resistance (RM): 0.0572 Ω
  • Stator diameter: 22mm
  • Stator thickness: 6mm
  • Motor diameter: 27.7mm
  • Motor body length: 19.2mm
  • Overall shaft length: 34.2mm
  • Prop adapter shaft: M5
  • Bolt holes spacing: 16mm
  • Bolt thread: M3
  • Propeller: 5-6 inch

    4 IN 1 30A BLHeli_S ESC

  • Continuous current: 30A
  • Peak Current: 40A(10S)
  • Input voltage: 2-5S
  • BEC: 5V 2A BEC
  • Main control chip: 48Mhz EFM8BB2
  • Firmware: BLHeli_S supports Dshot600
  • MOS: 5*6

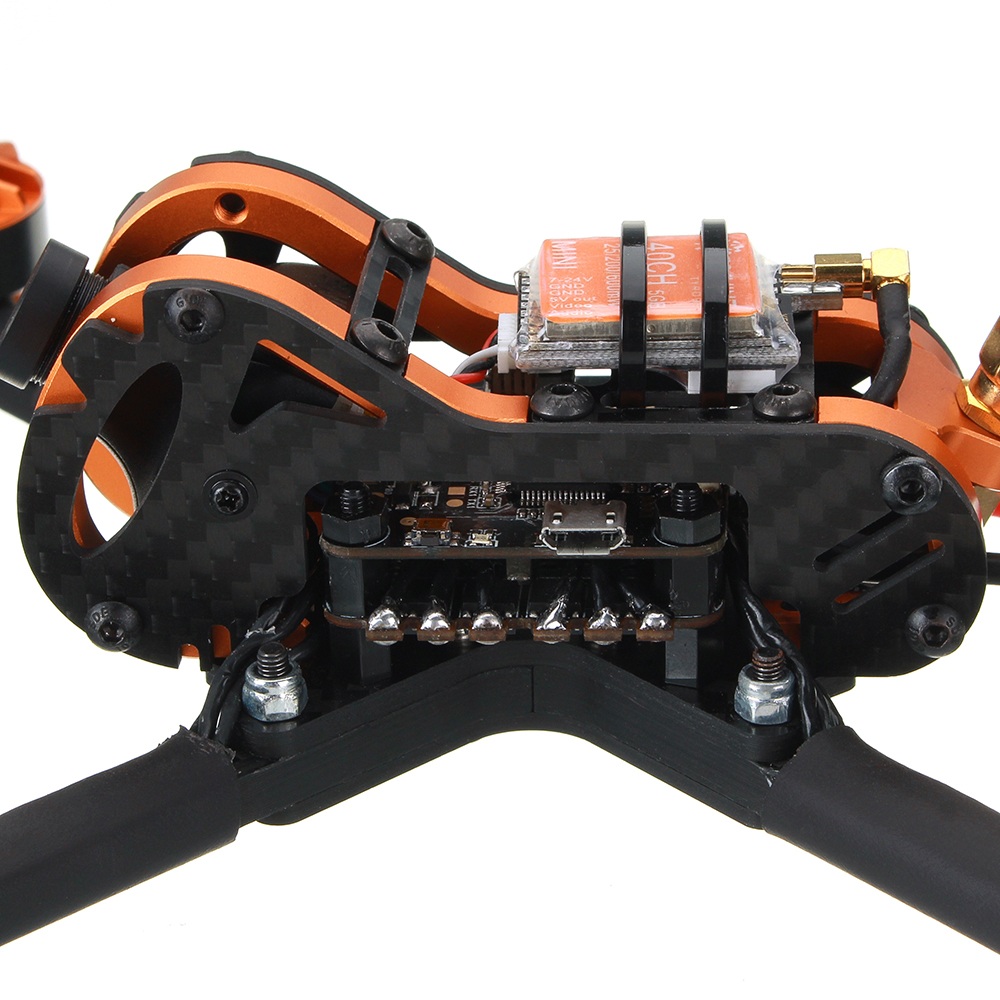

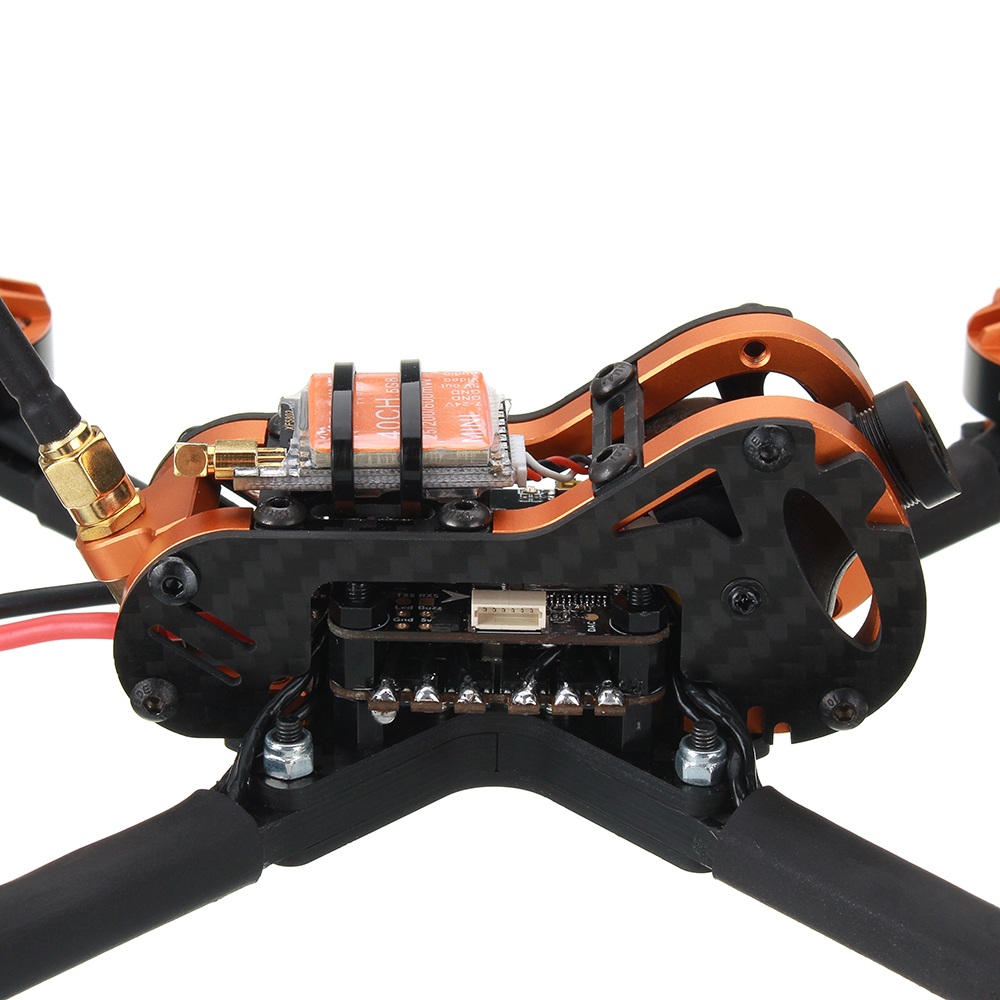

    Customized F4 Flight Controller

  • Main control chip: STM32F405
  • Sensor: ICM20602 6-axis
  • Power supply: 5V
  • Integrated OSD
  • Onboard LC filter
  • PID cycle rate & gyro refresh rate up to 32Khz
  • Supports BetaFlight / inva racing firmware

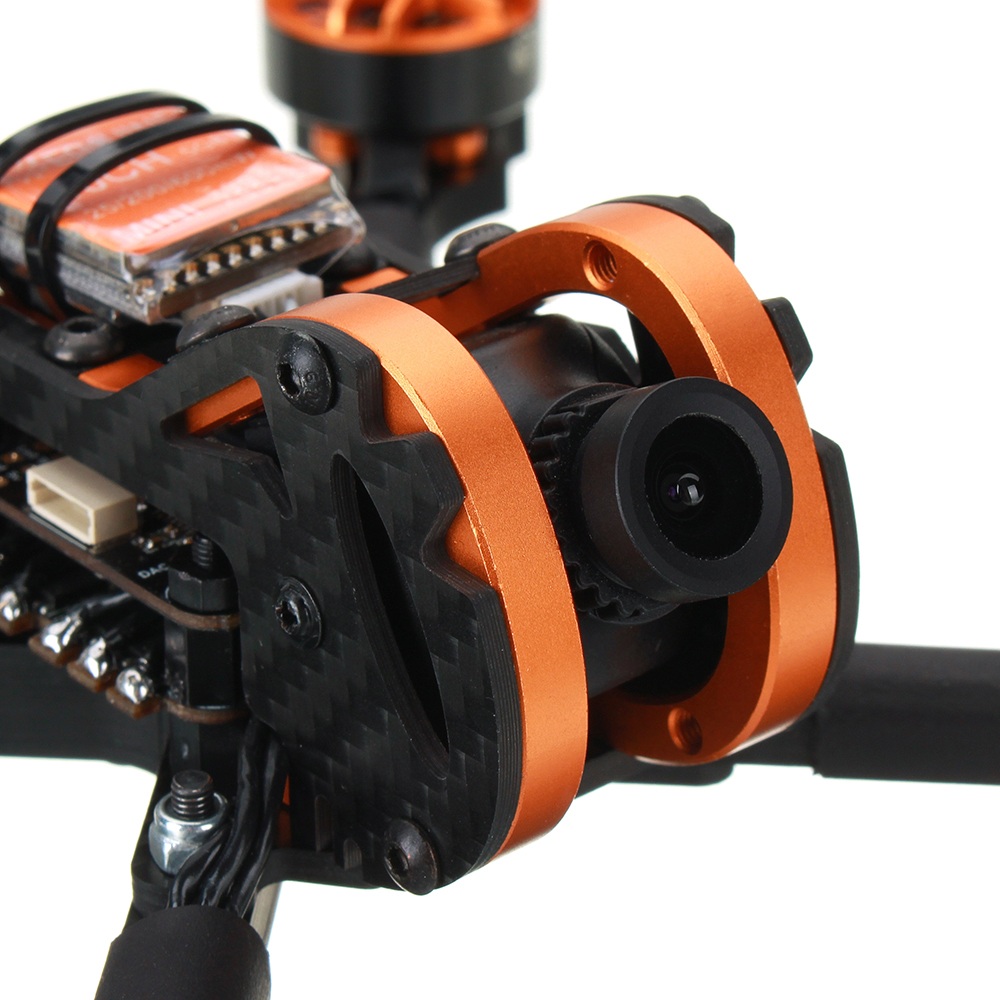

    700TVL COMS Camera

  • Case size: 25mm*25mm
  • Weight: 9.5g
  • Total pixels: PAL: 1020H?596V (0.61MP); NTSC: 1020H?508V (0.52MP)
  • Effective pixels: PAL: 976H?582V (0.57MP); NTSC: 976H?494V (0.48MP)
  • Signal system: PAL/NTSC switchable
  • Resolution ratio(horizontal center): 700TVL
  • Video output: 1.0Vp-p/75Ω
  • Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB
  • White balance: on/off optional
  • Exposure mode: electron exposure
  • Electronic shutter: 1/50(1/60) - 1/100000 S
  • Gamma correction: 0.45/1.0
  • Synchronization method: inter-sync
  • Camera lens: standard 2.8mm
  • Lens operating voltage: DC12V (wide voltage, measured can work normally at 7.5-13V)
  • Working current: 70mA (low power consumption)
  • Working temperature: -20℃~-60℃
  • Humidity: 0%~98%

    5.8G 40CH 0mW/25mw/200mw/600mw switchable VTX

  • Output power & transmission distance: ≥0.5km@25mW, ≥1km@200mW, ≥2km@600mW
  • Transmitting power: 0mW/25mW/200mW/600mW
  • Full video format: NTSC /PAL
  • Input voltage & power dissipation: 7V~24V, +12V/260mA@600mW
  • Size: 20*30*9mm
  • Weight: ≤7g(except antenna)
  • With output power self-check function.
  • Nixie tube SCAN: frequency point (1-8), frequency band (A-E), power (1-3, 0=0mw, 1=25mw, 2=200mw, 3=600mw)

    Racerstar 5038 2 Blade Propeller

  • Material: PC
  • Mounting hole: 5mm
  • Center thickness: 8mm
  • Quantity: 10 pairs
  • Color: blue, red, yellow, purple, white
  • Weight: 7.25G a pair
  • Delivery color randomly (10 pairs of propellers are the same color)

    Battery Not included : Recommend 3-5S

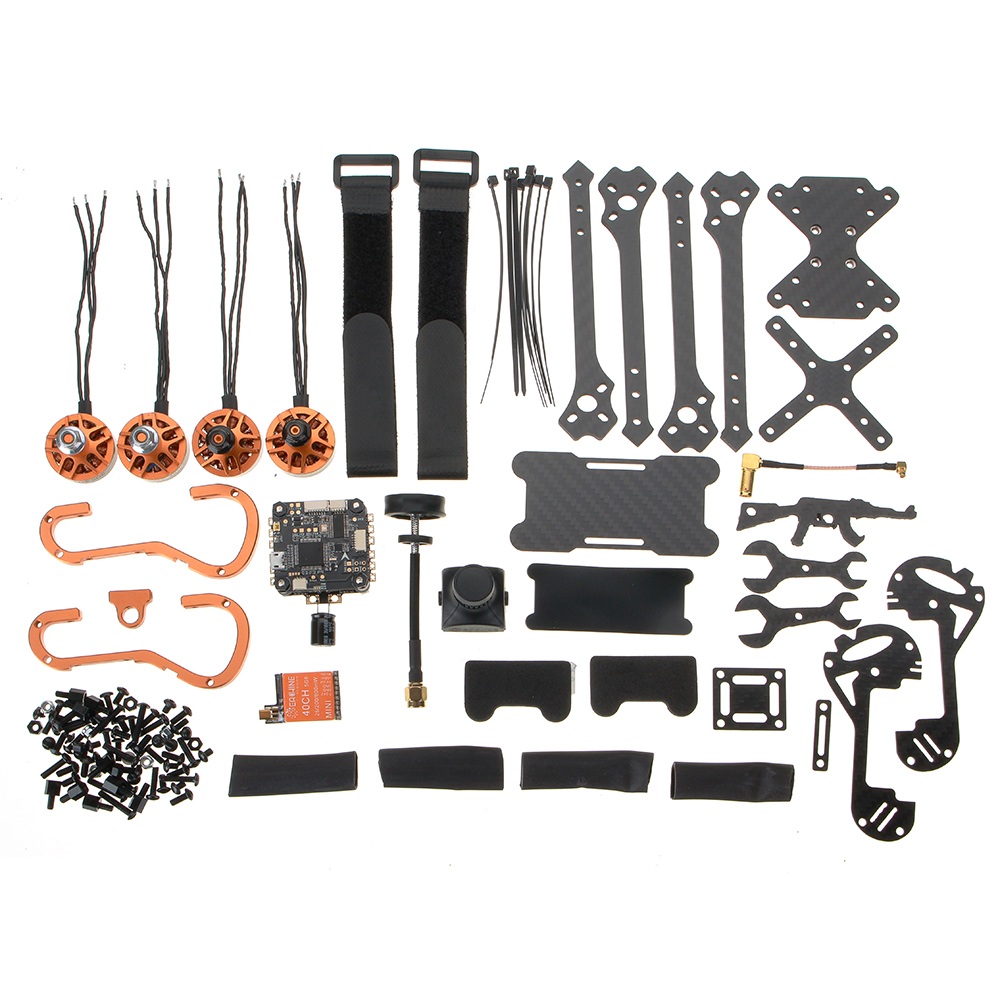

    Package included:
  • 1 x 210mm frame kit
  • 2 x 2206 2150KV brushless motor CW
  • 2 x 2206 2150KV brushless motor CCW
  • 1 x 4 IN 1 30A BLHeli_S ESC
  • 1 x Customized F4 flight controller
  • 1 x 700TVL COMS camera
  • 1 x 5.8G 40CH 0mw/25mw/200mw/600mw switchable VTX
  • 2 x Battery strap
  • Racerstar 5038 2 blade propeller CW
  • Racerstar 5038 2 blade propeller CCW
