Control two chargers from a single touch screen!
Enables you to set up, operate and monitor two chargers from a single 3.2” color touch screen.
Independent outputs let you peak 1-15 NiCd/NiMH cells at the same time you balance charge 2-6S lithium packs.
Both sides also charge single lithium cells and 4-, 5- and 8-cell radio packs.
Stores up to 10 battery charging routines per output for easy retrieval and use.
Lets you customize sound cues, text color and backlighting to your preferences.
DC power lead with alligator clips for easy connection to 12V power sources.
Features 60W AC power supply and 0.1-6A fast charge rates on both outputs.
Includes two 2-6S balancing boards and two sets of R/C's most popular adapters.
5-year limited manufacturer's warranty.
Say “Goodbye!” to programming with push buttons and “Hello!” to the most advanced Onyx charger ever. Its 3.2 inch color touch screen is the key, because you can take advantage of the 260's power and potential with a fingertip. Just touch the screen to select from two charging outputs with identical charging capabilities. Touch again to program up to 10 battery charging routines on either output, and to view data in numerical form or as color graphs. Combined with 0.1-6A charge rates, balance charging for 2S-6S lithium packs and peak charging for up to 15 nickel cells, the Onyx 260 offers an unequaled mix of ease, versatility and value.

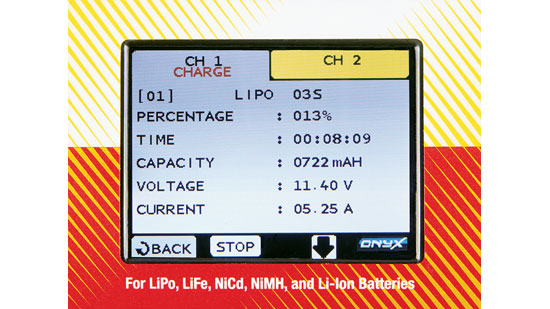

In Data mode, you can vary text color for easier reference and monitor all charge data on just two easy-to-read screens.

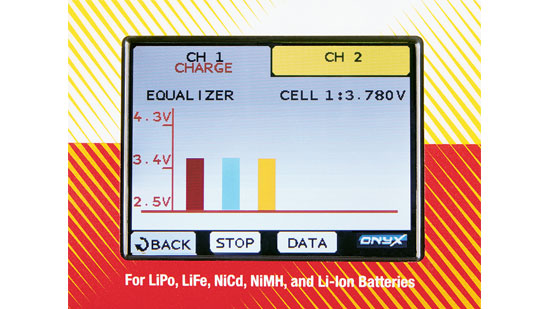

In Graph mode, you can monitor charging progress in chart form and get temperature, voltage and time readings as well.

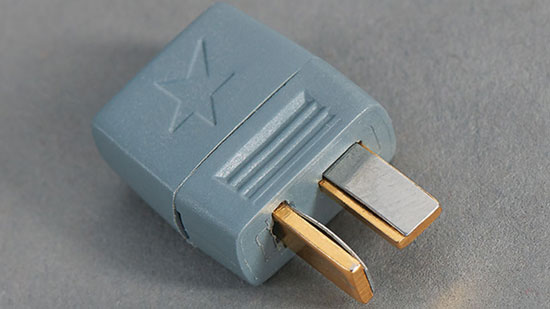

The Star Plug is fully compatible with the polarized power plug modelers use most and a “next-gen” advance in connector design. It's easier to grip during installation and removal, holds tighter in-between and prevents loose wires from shorting out. Look for it wherever you see the stylized star!
Charges 1-6S Lithium batteries and 1-15 cell NiMH/NiCd batteries
Compact 60W AC power supply
0.1-6A fast charge rates
*Allow setting up, operating and monitoring data on a single 3.2"
color touch screen
*Offer a charge jack for 4-, 5- and 8-cell radio packs
*Include storage for up to 10 battery charging routines
Data Mode allows monitoring all charge data at a quick glance
Graph Mode monitors charging progress in chart form and displays
temperature, voltage and time readings as well
FIVE YEAR limited warranty through Hobby Services (U.S.A. and Canada
only) beginning at date of purchase
Duratrax Onyx 260 AC/DC Dual Touch Charger
Two 2-6S Balancing Boards GPMM3200
Two Standard Plug Adapters
Two Star Plug Adapters
One Charge Lead with Alligator Clips
AC Input: 110V AC 60Hz
AC Input Cord/Connector: Detachable lead with plug
DC Input (V): 11.0-15.0
DC Input Cord/Connector: Detachable lead with clips
Number of Outputs: Two
Cell Chemistry and Number of Cells: 1-15 NiCd and NiMH; 1-6S Lithium
Fast Charge Current (A): 0.1-6.0 (60W) 120W total
Fast Charge Termination: Peak (for NI); cc/cv (for Li)
Peak Sensitivity (mV): 10-20 adjustable
Auto Trickle: Yes
Trickle Charge Rate (mAh): 1/20 of fast charge current (auto);
Max. Node Current (mA): 300
Number of Memories: 10 per output; 20 total
Main Output/Connector: Banana jacks; leads with standard and Star
Radio Battery Charge Jack/Connector: 4-5 & 8C NiCds, NiMHs and
Balancing Jack/Connector: Balancing boards with JST XH plugs
Balancing Accuracy: 5 mV per cell
Display Type: Full color 3.2" touch screen
Data Displayed: Cell chemistry; input, output, peak and cell
voltages, charge current, time & capacity; errors and alerts
Dimensions: 6.0" x 2.75" x 7.25" (152mm x 70mm x 184mm)
Weight: 18.8oz (553g)
Safety Timer (min): 0-300 (adjustable)
Other Safety Features: Reverse polarity, current overload protection
Audible Alerts: Start, stop, errors and setup
