TOP FEATURES:
Power supply: 1S
Super light only 4.8g
MCU?STM32F411
Gyro: MPU6000
Support BLHeliSuite programmable
5A continuous current
Built-in VTX
Built-in D8 Receiver

FC // SucceX-1S Whoop AIO Board
Size?29*29mm
Mounting pattern: 25.5*25.5mm/?3mm ?half-hole)
Connector?Micro-USB
Weight: 4.8g (with power cable, VTX, and VTX antenna)

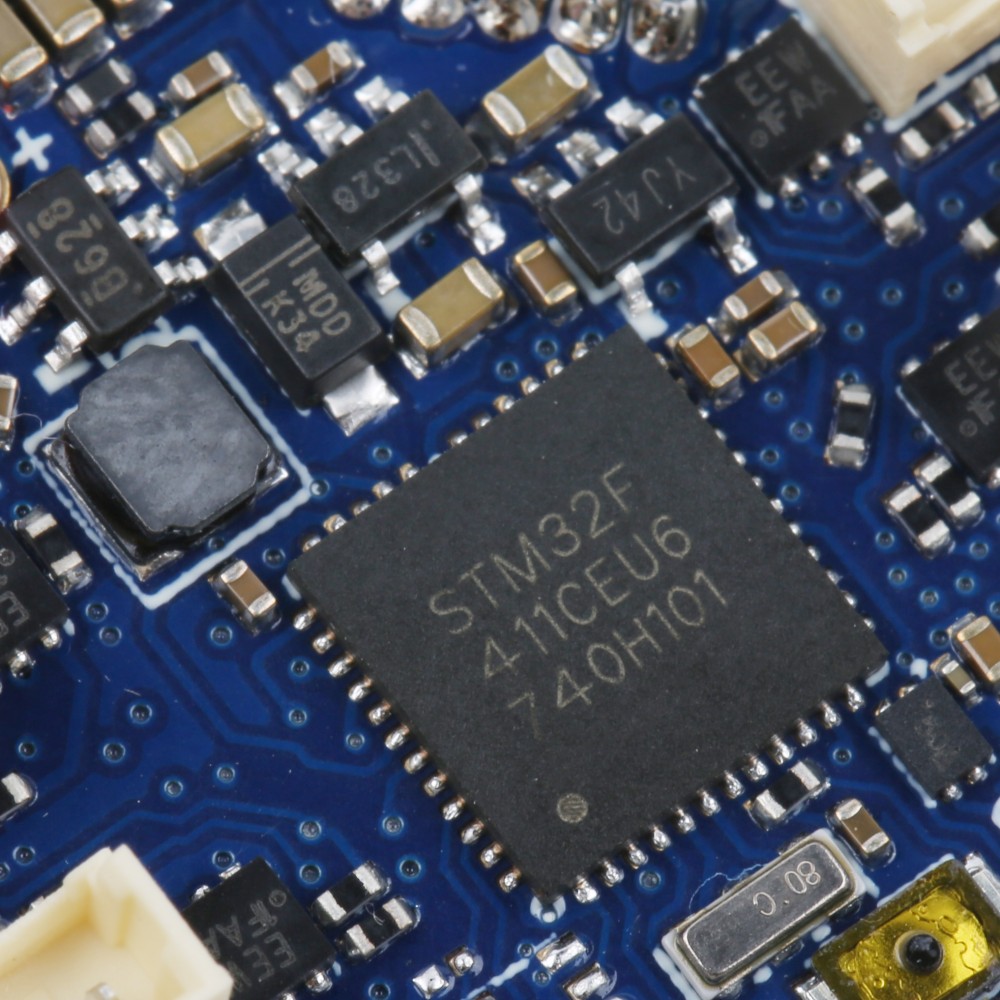

MCU?STM32F411
Gyro?MPU6000
Blackbox?no
BEC output?5V 1.2A
INA pad?n uart2
Barometer?no
FC Firmware?MatekF411RX
NOTE: F.PORT protocol RX input support, telemetry not supported.

ESC // 5A
Current: 5A continuous and peak 6A
Current scale: 400
Input?1S
Signal Support: Dshot?Oneshot?Multishot
Current sensor?yes
BLHeli?BLHeli-S
ESC Telemetry?no
ESC Firmware?O_H_05 16.8

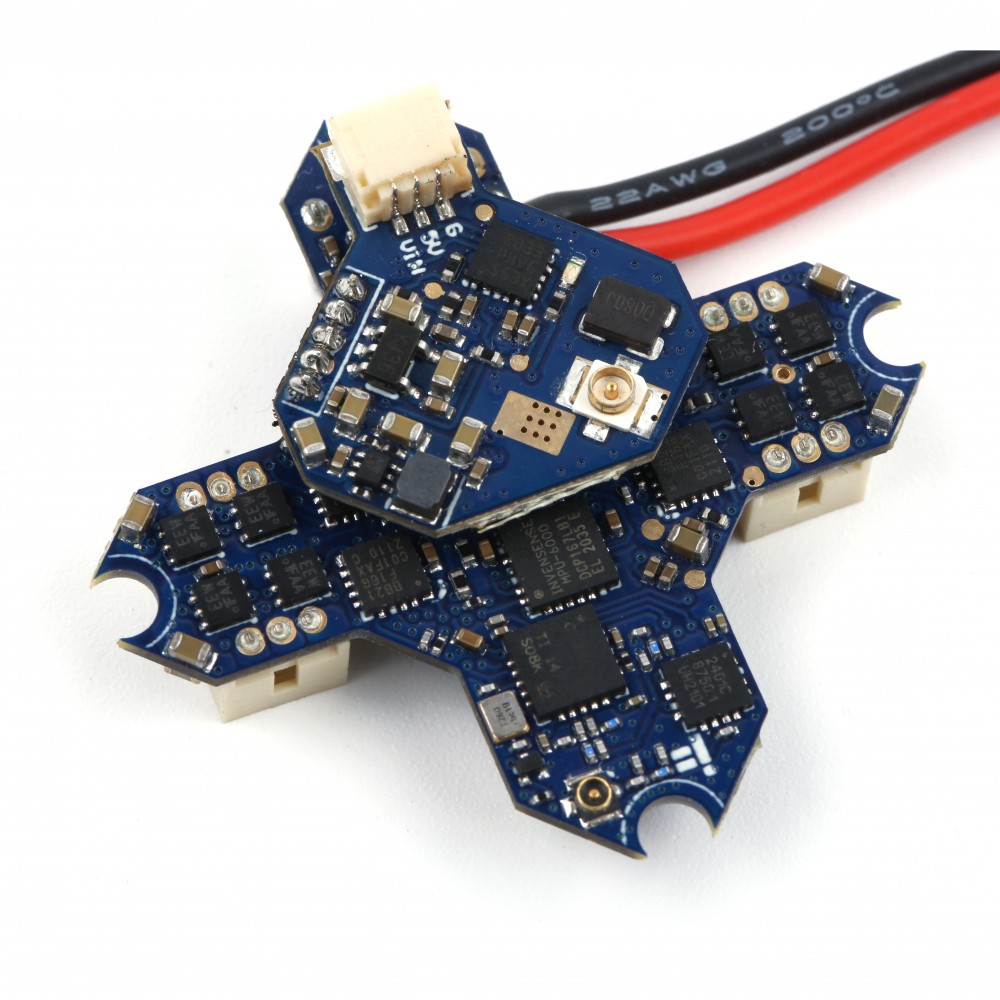

VTX?
Input voltage: 5V
Channels: 48CH
Power: PIT/25/50mW
Connector: UFL/IPEX
Protocol: Smart audio

Package Includes:
1 x SucceX F4 V2 1S 5A Whoop F4 AIO Board V2 (MPU6000)
1x Whip antenna
