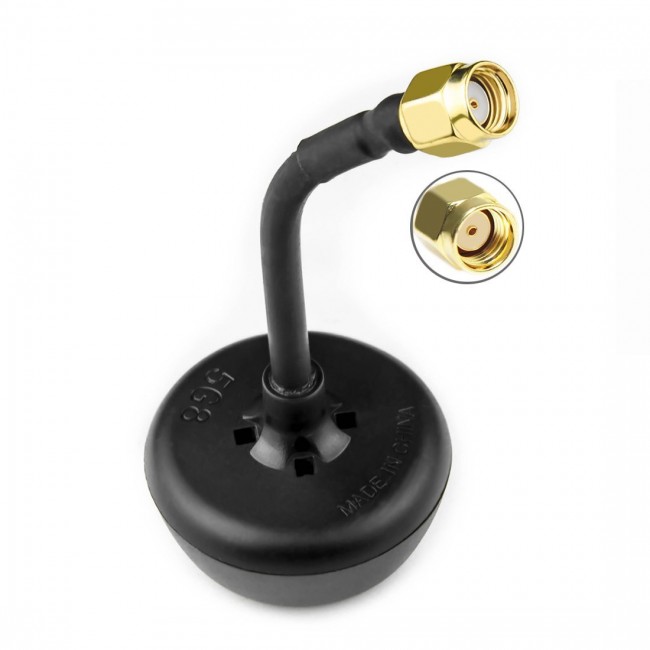

AKK M0 RP-SMA Circular Polarized FPV Mushroom Antenna
[AKKM0]
[U.HEEE]
9718
$6.66US
- SNHE




Share |



AKK M1 TX/RX RP-SMA Male Circular Polarized FPV Mushroom Antenna

This thoughtfully designed circular polarized antenna utilizes mushroom protective case to protect elements inside, which can outperform typically fragile wire elements. The antenna greatly improve the range and covering video transmitting and receiving system. Circular Polarized Antenna can reduce interference. For best performance we recommend using it as matched set.

Gain:5dBI, Frequency Range:5.8GHz
Max Power:50W
Connector: RP-SMA
Stable signal transmission
Polarization:Circular polarization (RHCP)

Features:
5.8G Circular Polarized Mushroom Antenna, small size and light weight.
High sensitivity, Stable signal transmission
Electrical Specifications:
Frequency Range:5.8GHz
Impedance:50Ω
VSWR:<1.5:1
Gain:5dBI
Polarization:Circular polarization, Right-handed (RHCP)
Max Power:50W
Mechanical Specifications:
Height:86mm
Max diameter:33mm
Min diameter: 4mm
Connector: RP-SMA
Lighting Protection:DC Grounded

Package Included:
1 x 5.8G Circular Polarized Mushroom Antenna
