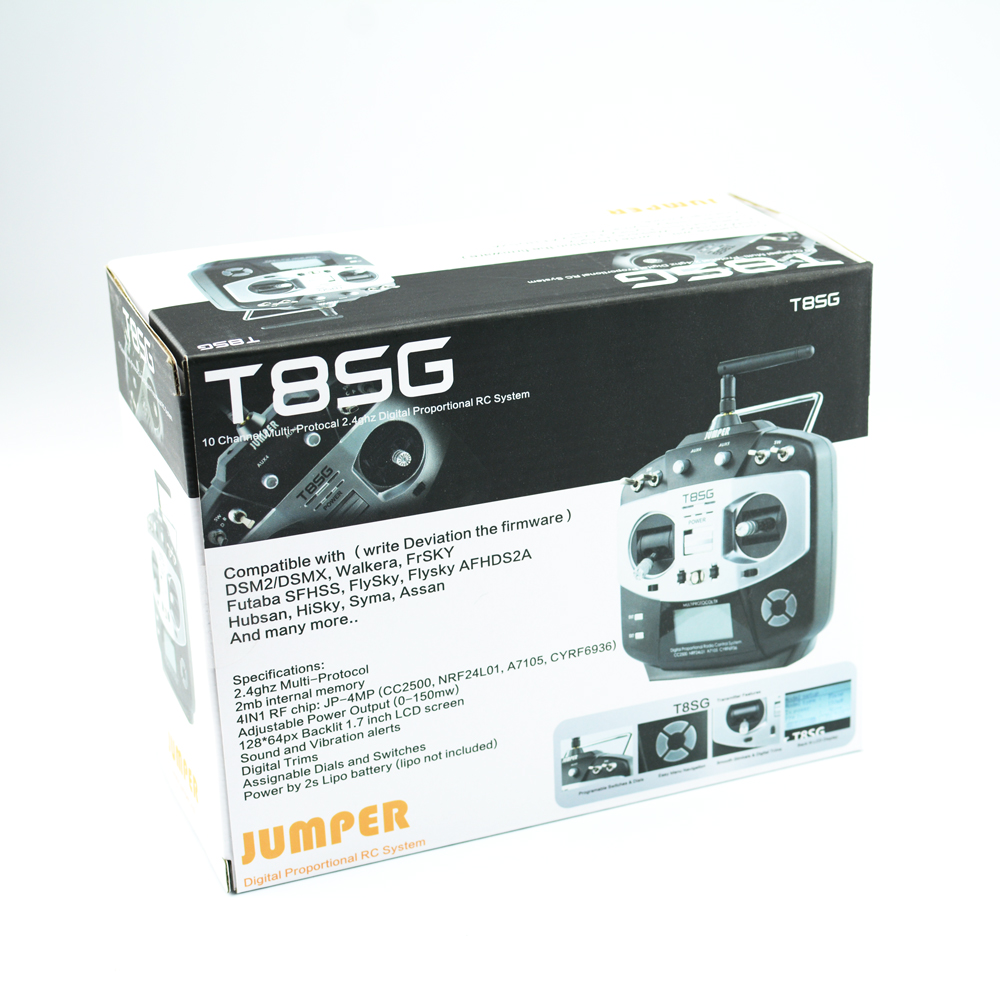

Jumper T8SG Multi-Protocol Compact Radio
[HP056-0002]
[YU.OBEE]
9592
$79.99US
- SNHE




Share |



The Jumper T8SG Multi-Protocol radio features a compact size and a host of protocol options all built in to one product. The CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules are all integrated with the main RF Module. Various protocols can be quickly and easily selected from the model menu allowing you to bind the radio to just about any major protocol in todays market. The T8SG also features sound and vibration alerts, back lit LCD display, smooth gimbals and assignable switches.

The T8SG is a truly portable solution for all your models without compromising on that real radio feel and functionality. Control all your favorite RC items from one radio and have more space for models!

DeviationTX Software comes pre-installed with the T8SG fore more information on DeviationX please visit www.deviationtx.com/

Technical parameters:
MCU: STM32F103RCT6
Storage: 25VF016B (2MB)
4IN1 RF chip: JP-4MP(CC2500, NRF24L01, A7105, CYRF6936)
Transmission power: adjustable 0-150mw
Display screen: 128*64, 1.7 inch LCD
Channels: 10 (up to 12 depending software)
Prompt mode: sound and vibration
Power supply: 2S Lipo
Dimension: 188*151*86mm
Weight: 338g (not include battery)

RF Chip Data
Cyprus Semiconductor CYRF6936: DSM/DSMX, Walkera Devo
Texas Instruments CC2500: FrSky, Futaba SFHSS
Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models
