Matek 5.8G 40CH 25/200/500mW switchable Video Transmitter VTX-HV with 5V/1A BEC Output
[1175514]
[UA.ULUB]
9580
$29.95US
- SNHE




Share |



Specifications & Features (user manual):
Input voltage: 7~27V(2~6S LiPo)
40 standard channels, A/B/E/F/R Band
Output Power: 25, 200, 500mW switchable
BEC Output: 5V/1A for Camera or FC

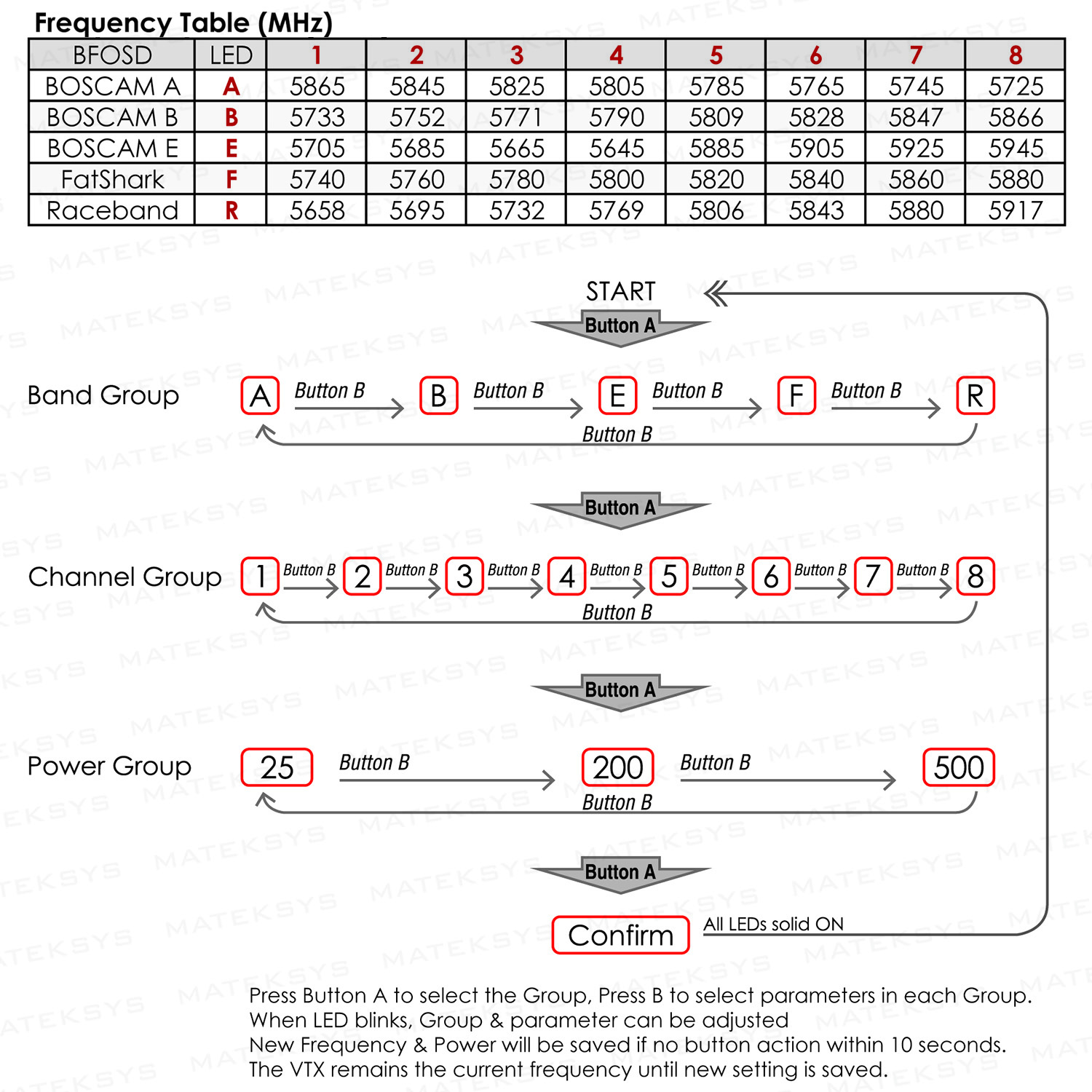

Traditional button+LED control of frequency and power
BFCMS control via FC UART _TX
Firmware upgradeable

Power Consumption: 3.1W Max. @ 500mW
Video Input Impedance: 75 Ohm
Audio Subcarrier Frequency: 6.5 MHz
RF Connector: U.FL (IPEX)
Video Format: NTSC/PAL
Weight: 6g (Tx only, w/o SMA cable)
Size: 36*22*6.5mm w/30.5mm mounting

Package included:
1x 5.8G Video transmitter
1x IPEX to SMA Female, RG178 cable 10cm
1x IPEX 5.8G whip antenna, RG178 10cm
1x PVC Heat-shrink tube
