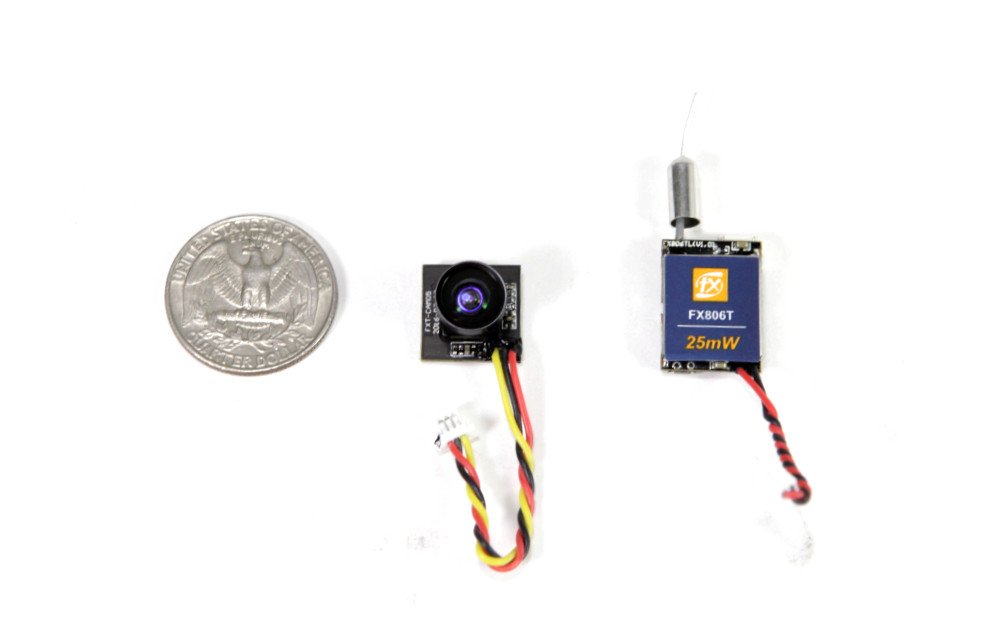

FX806T NanoCam - Micro FPV Camera with Detached 5.8G 25mW 40CH Video Transmitter
[FX806T]
[UO.EEEE]
9018
$34.99US
- SNHE




Share |



The smallest FPV camera yet! For those extremely small and light-weight builds. With detached VTX that allows for easier placement of the components on to really tight spaces. Perfect for your modified TinyWhoops and smaller!

To change channels single press channel button. The channel LED always keeps red for 1st channel of any band, for other channels, channel LED OFF. To change frequency press and hold the channel button for 2 seconds.

Specifications:
Super small and lightweight
Detachable camera vtx design
Power by 1S lipo battery
With dipole whip antenna
Power off memory function: restart as the very last channel kept before power off
Button control instead of switch
Easy to install, plug and play

Camera:
Model Number-V60T
Power supply 3.7-5V
Current consumption 60mA
Resolution 600TVL
FOV 120 degree
Video format NTSC
Mini illumination 1.0 lux
Dimension 14x14mm
Weight 2g

Video Transmitter:
Model number FX806T
Power supply 2.5-5V
150mA@3.7V,110mA@5V
Working frequency 5.8GHz
Output power 25mW
Channel 40 channels with Raceband
Video band width 6.0MHz
Antenna dipole whip antenna or other antenna
Dimension 19x14mm
