Designed specifically for FPV Racing, FX has been producing the 799T AV Video Transmitters in various output powers to suit every need of FPV flight! Offering a full 40 Channel Selection, Race Band has been a great addition to FPV in that it allows improved channel separation over the whole 5.8GHz band allowing for a maximum of 8 pilots to fly at once (when all are using Race Band). In a small and lightweight format, the FX Video Transmitter is a great addition to any FPV aircraft.
Additionally included is an input Voltage Filter cable which allows LiPo input from 2s-6s, and reduces voltage noise under extreme braking conditions when using certain ESC's.
NOTE: Without filtering input voltage, it is possible to permanently damage the video transmitter. Warranty will not be accepted under these conditions.

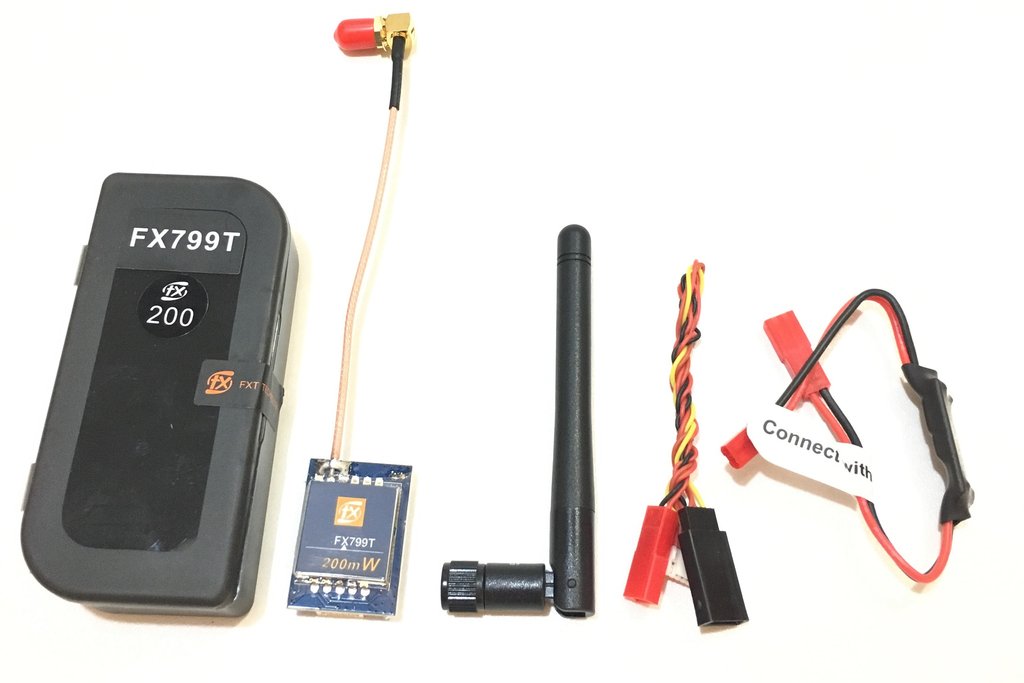

(1) FX799T 200mW AV 5.8GHZ Video Transmitter with pigtail connector
(1) Whip Antenna
(1) Voltage Filter Cable
(1) Power Connection AV Cable
(1) User Manual
Transmitting Frequency: ISM 5.6GHz-5.95GHz 40CH
Operating Voltage: 7V-24V
Supply Current: 200mA±10mA
Video Input Level: 1V±0.2Vp-p/75Ω
Audio Input Level: 0.5～2.0Vp-p/10KΩ
RF Output Power: 200mW (23.5dBm±0.5dBm)
Dimensions (LxWxH): 31x20x8mm
Transmitter Connector: SMA
