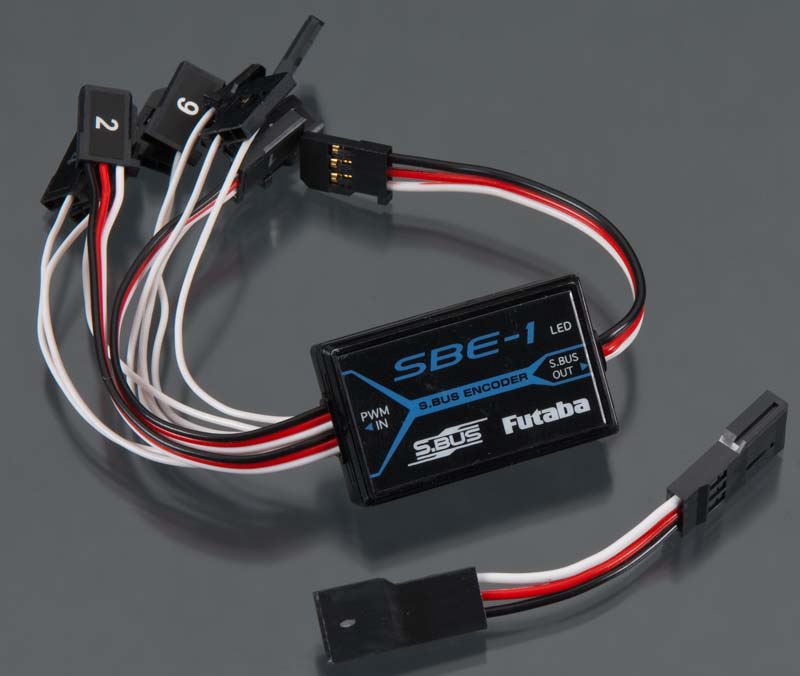

This is the Futaba SBE-1 S.Bus PWM Adapter.

FEATURES:
Makes almost any receiver instantly compatible with S.Bus programmable servos as well as the CGY750 gyro and other S.Bus capable equipment. Converts input from up to 10 PWM channels into a single S.Bus output. One year limited warranty through Hobby Services beginning at date of purchase

INCLUDES:
Futaba SBE-1 S.Bus PWM Adapter with ten Servo Connectors, S.Bus Output Connector and Instruction Manual

SPECS:

PWM Input: Max 10chs

Input Pulse Width: 805-2235uS

Input Frame Rate: 3-27.3ms

Output Signal: S.BUS

S.BUS Data Rate: 100kbps

Output Frame Rate: Approx. 7mS

Operating Voltage Range (rated): 4.8 - 7.4V

Dimensions: 0.92 x 1.3 x 0.37" (23.5 x 33.5 x 9.5mm) excluding cable

Weight: 0.53oz (15g) including cables

Operating Temperature Range: -10 - +45?C

Storage Temperature Range: -20 - +60?C
