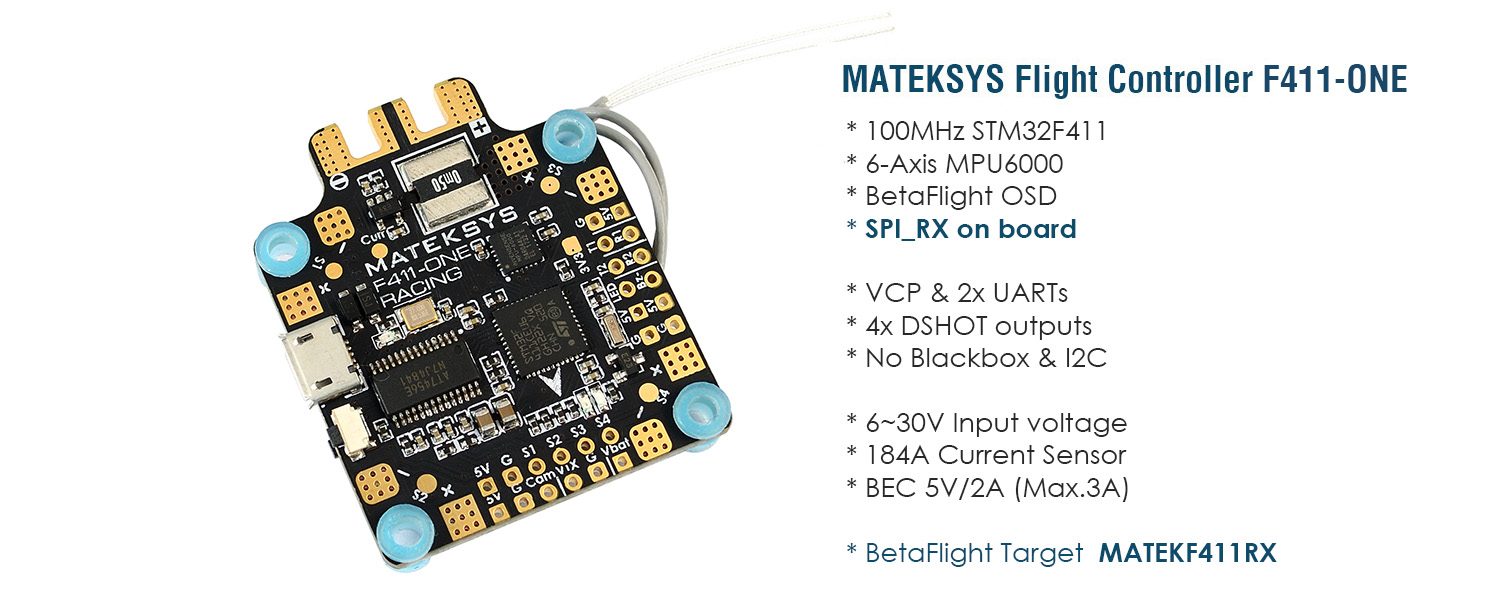

Matek Systems FLIGHT CONTROLLER F411-ONE
[HP024-0038]
[HU.UFEE]
[YA.UUA.BBI.UAL]
$42.99US
- SNHE


IMAGE_BUTTON_SOLD_OUT - SNHE

Share |



STM32F411, MPU6000, BFOSD, SPI Receiver(Frsky_X), VCP+2x UARTs, 4x DShot outputs, PDB, Current Sensor in ONE!!!

SPECS:

  • MCU: 100MHz STM32F411CEU6
  • IMU: MPU6000 gyro/accelerometer (SPI)
  • OSD: BetaFlight OSD w/ AT7456E chip
  • SPI RX: module 2500-2431, Frsky_X or Frsky_D protocol
  • VCP, UART1, UART2
  • WS2812 Led Strip : Yes
  • Beeper : Yes
  • PPM: RX2 pad
  • Blackbox: No
  • SBUS input: No
  • I2C1 SDA & SCL: No
  • PDB Specifications

  • Input: 6~30V (3~6S LiPo) w/TVS protection
  • PDB: 4x30A (Max.4x46A)
  • BEC: 5V 2A cont. (Max.3A)
  • LDO 3.3V: Max.300mA
  • Current Sensor 184A (Scale 179)
  • Battery Voltage Sensor: 1:10 (Scale 110)
  • 3x LEDs for FC STATUS (Blue) , RX (Green) and 3.3V indicator(Red)
  • 4x PWM / DShot outputs
  • 2x UARTs
  • 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
  • 4x pairs of corner pads for ESC Power connections
  • 1x Side-press button for BOOT(DFU) mode
  • 1x Side-press button for RX bind
  • 36x46mm PCB with 30.5mm mounting holes 10g
  • w/ 1x Rubycon ZLH 35V/470uF (Low ESR)
  • w/ 6x silicon grommets M4 to M3
  • w/ 2x IPEX- 2.4G antenna 15cm
