MINI UpGrade TS100 Digital OLED Programable Interface DC5525 Soldering Iron Station Built-in STM32 Chip

MINI UpGrade TS100 Digital OLED Programable Interface DC5525 Soldering Iron Station Built-in STM32 Chip
[1021266]

MINI UpGrade TS100 Digital OLED Programable Interface DC5525 Soldering Iron Station Built-in STM32 Chip - SNHE
$69.49US
Features :
  • OLED screen
  • Micro USB port
  • DC5525 port

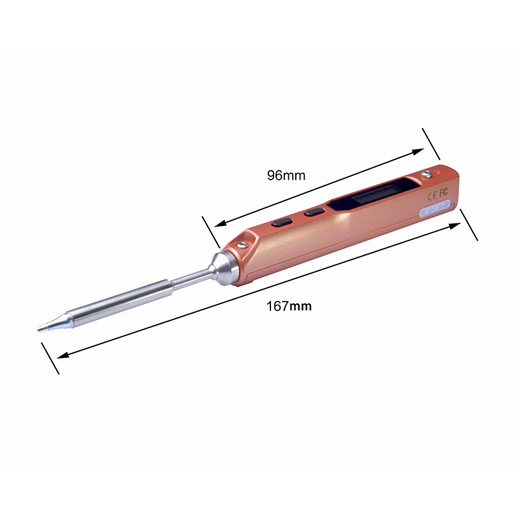

  • Control part: length 96mm, Diameter:16.5mm
  • Heating part: Length: 72+33mm, Diameter: 5.5mm
  • Weight: 33g (power adaptor not included)
  • Compliant with EU certification: CE FCC

    Resource download: http://www.minidso.com/forum.php?mod=viewthread&tid=892

    Functionalities
  • Control part:TS100 employs 304 stainless steel nested shell of Polycarbonate plastic. It is designed with safety circuit and anti-static structure, integrated with DC5525 12-24V port, dual-temperature sensors and accelerated sensors with STM32 chip. Under these functionalities, temperature can be controlled accurately, stably and easily adjusted from 100C to 400C, and the TS100 also has sleep mode and automatic over-heating warning.
  • Soldering tip heating end: built-in heating core, pocket-size making it more convenient. Four replaceable tip types meet your different needs.
  • External power supply: DC5525 power port is compatible with DC 12-24V Laptop AC Adapter/Power Bank/Car Power.
  • Micro USB port interface: Set up config files to design your own temperature rising curves and custom functions.
  • Additional function: Open-source application layer.

    Main parameters:
  • Power: 65W
  • Temperature stability: 2%
  • Soldering tip resistance to ground: <2Ω
  • Temperature Range: 100℃ - 400℃(max)
  • Max operation ambient temperature: 40C
